TEMP CONTROLLER- WiFi ITC-308

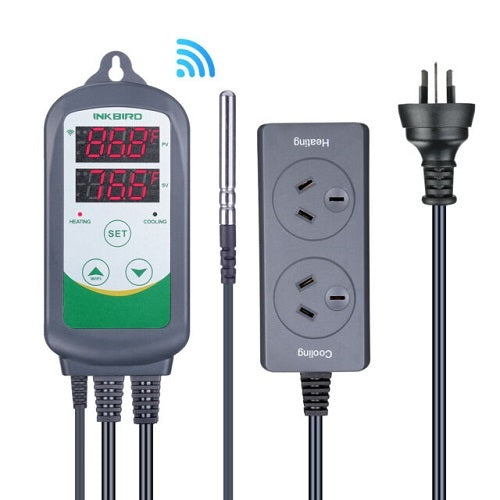

Inkbird WiFi ITC-308 Digital Temperature Controller

Features

• Plug and play design, easy to use.
• Support reading with Centigrade or Fahrenheit.
• Maximum output load: 2400 Watt (240 Volt).
• Temperature calibration, Compressor delay protection for refrigeration control.
• High and low temperature alarms are available.
• Dual relay output, be able to connect with refrigeration and heating equipment at the same time.
• Dual display window, be able to display measured temperature and set temperature at the same time.
• Heating/Cooling differential function could be set separately for refrigeration and heating to protect temperature controller from violent change.

Specification

• Power: Voltage: 100~230 Vac，50/60 Hz, Current: 10 A, Max Wattage:, 2200 W (220 Vac)
• Type of temperature probe: R25℃=100KΩ±1%,R0℃=26.74~27.83KΩ,B25/85℃=3435K±1%
• Temperature measurement range:-40℃~100℃/-40℉~212℉
• Temperature display accuracy: 0.1℃ /℉(<100℃/℉), 1℃/℉(>=100℃/℉)
• Display unit: Celsius ℃ or Fahrenheit ℉
• Ambient temperature: -20℃~60℃/-4℉~140℉
• Storage environment: temperature:0℃~60℃/32℉~140℉;
• humidity: 20~80%RH(Unfrozen or condensation )
• Warranty:Controller:2 years warranty ；Temperature Probe:1 year warranty

Package Included

• 1 x WIFI ITC-308 Temperature Controller
• 1 x Manual
