STILL SPIRITS VORTEX AIR COOOLED REFLUX EQUIPMENT KIT

Powered by VORTEX, connected by CREATE+.

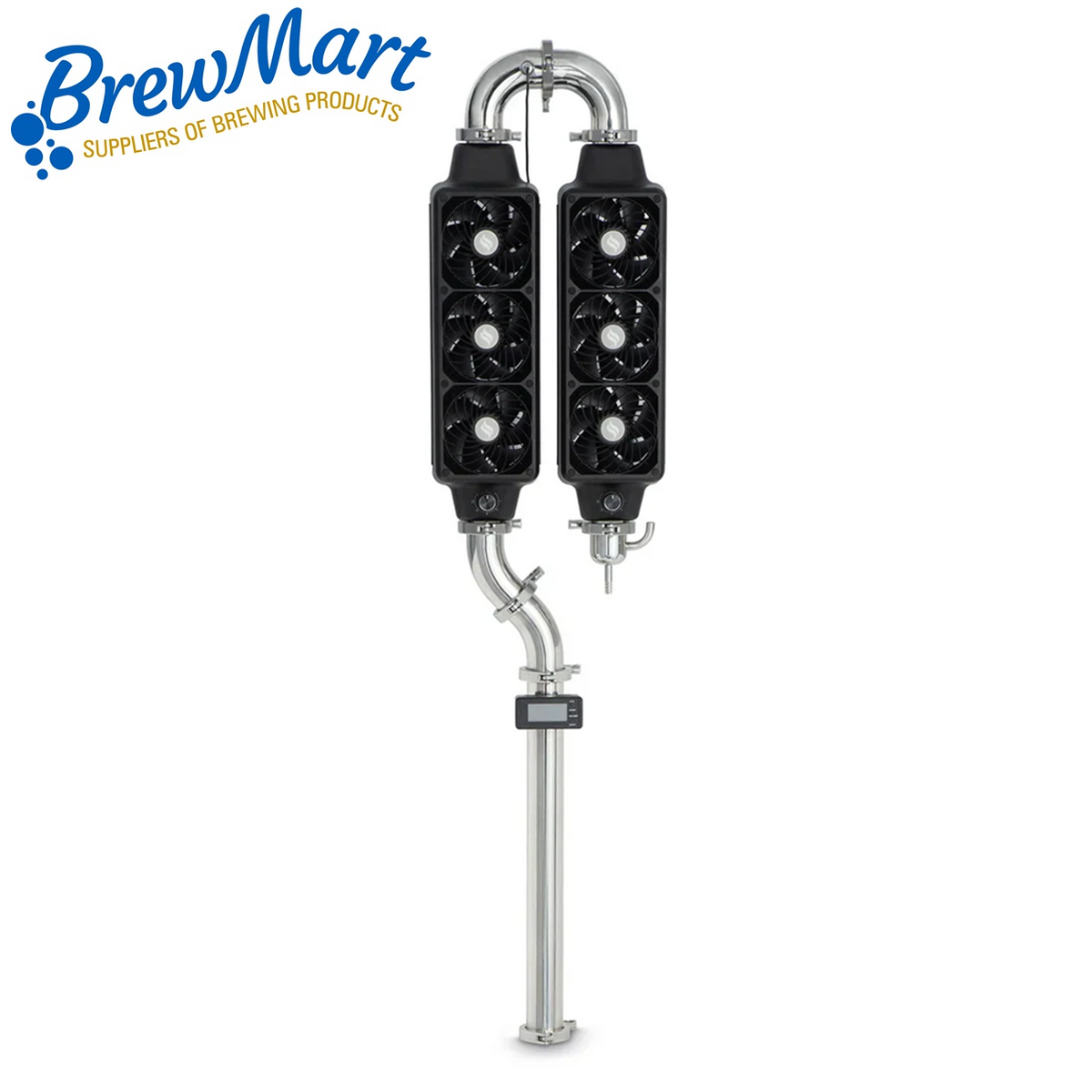

This is a complete Reflux Condenser Set to fit onto a 25 litre boiler.

The VORTEX is a groundbreaking air-cooled condenser that allows you to operate anywhere without the constraints of cooling water, without sacrificing time or quality, and saving hundreds of litres of water per run.  Complete with two VORTEX Air Cooled Condenser modules, CREATE+ 2" modular components, and connecting tri-clamps and gaskets, the VORTEX Reflux Equipment Kit allows you to run your reflux setup without any additional cooling water needed.

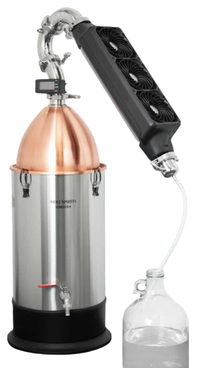

A 2-in-1 equipment kit, the components in this kit can also be reconfigured to support water-free alembic distillation.

The VORTEX Air Cooled condenser utilises forced air to dissipate heat from vapour and liquid and can be used in place of water-cooled condensers and dephlegmators. A simple turn of a dial controls fan speed and cooling temperatures instantly and puts precision in your hands at every stage.

INSTRUCTIONS:

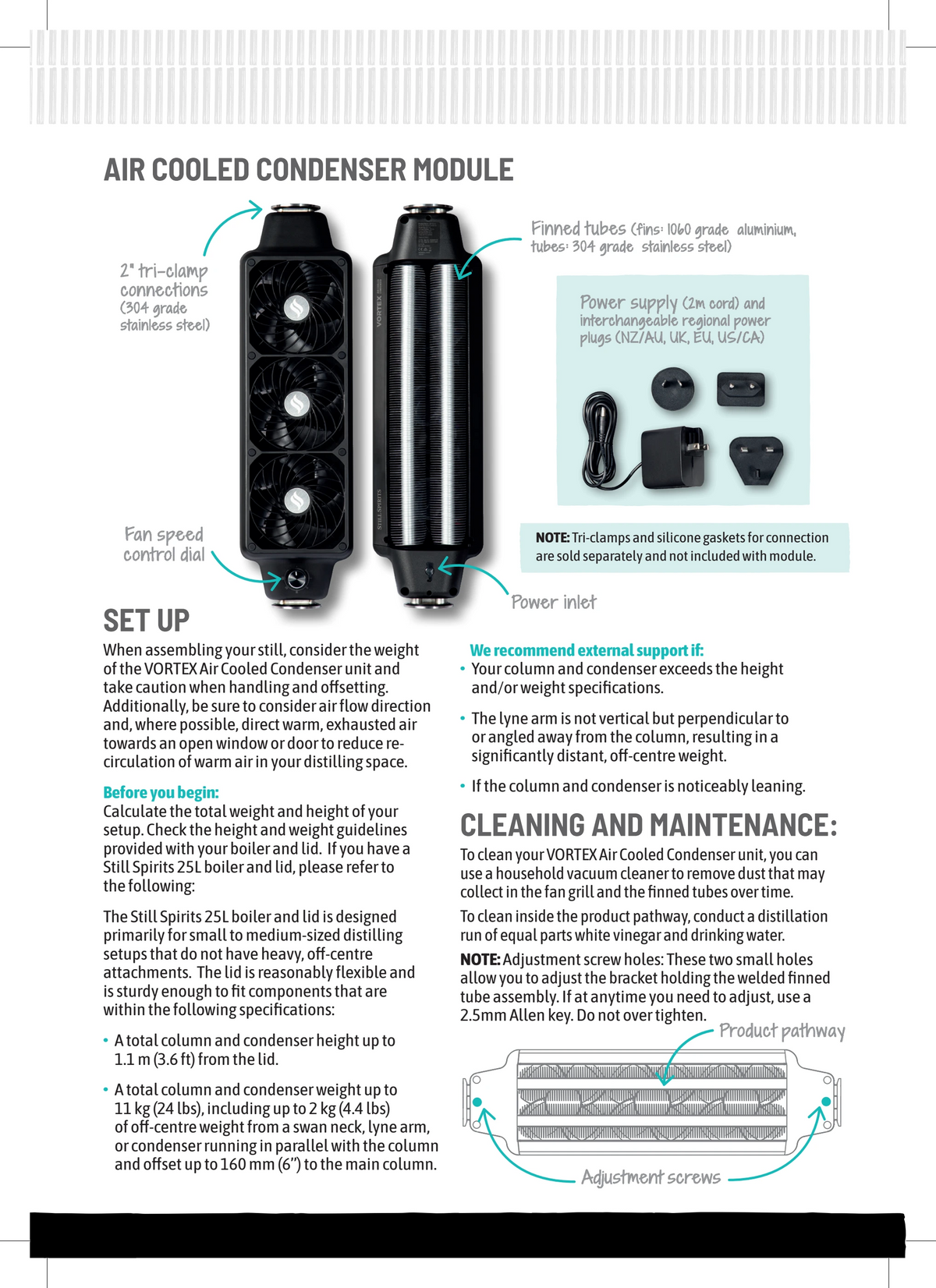

Assemble the CREATE+ modular components with the VORTEX Air Cooled Condenser modules per the instructions.  Attach to your boiler (sold separately) and connect to power.

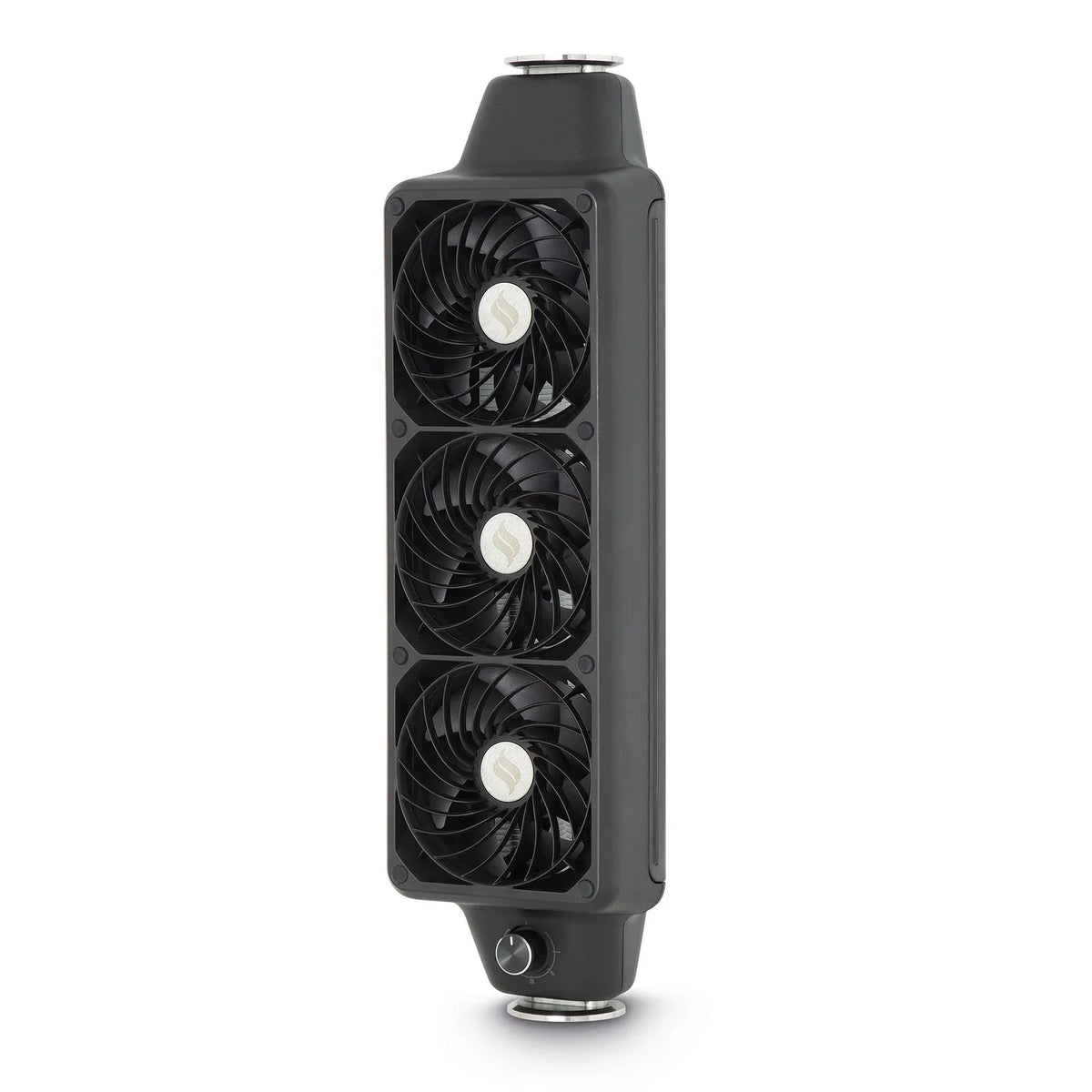

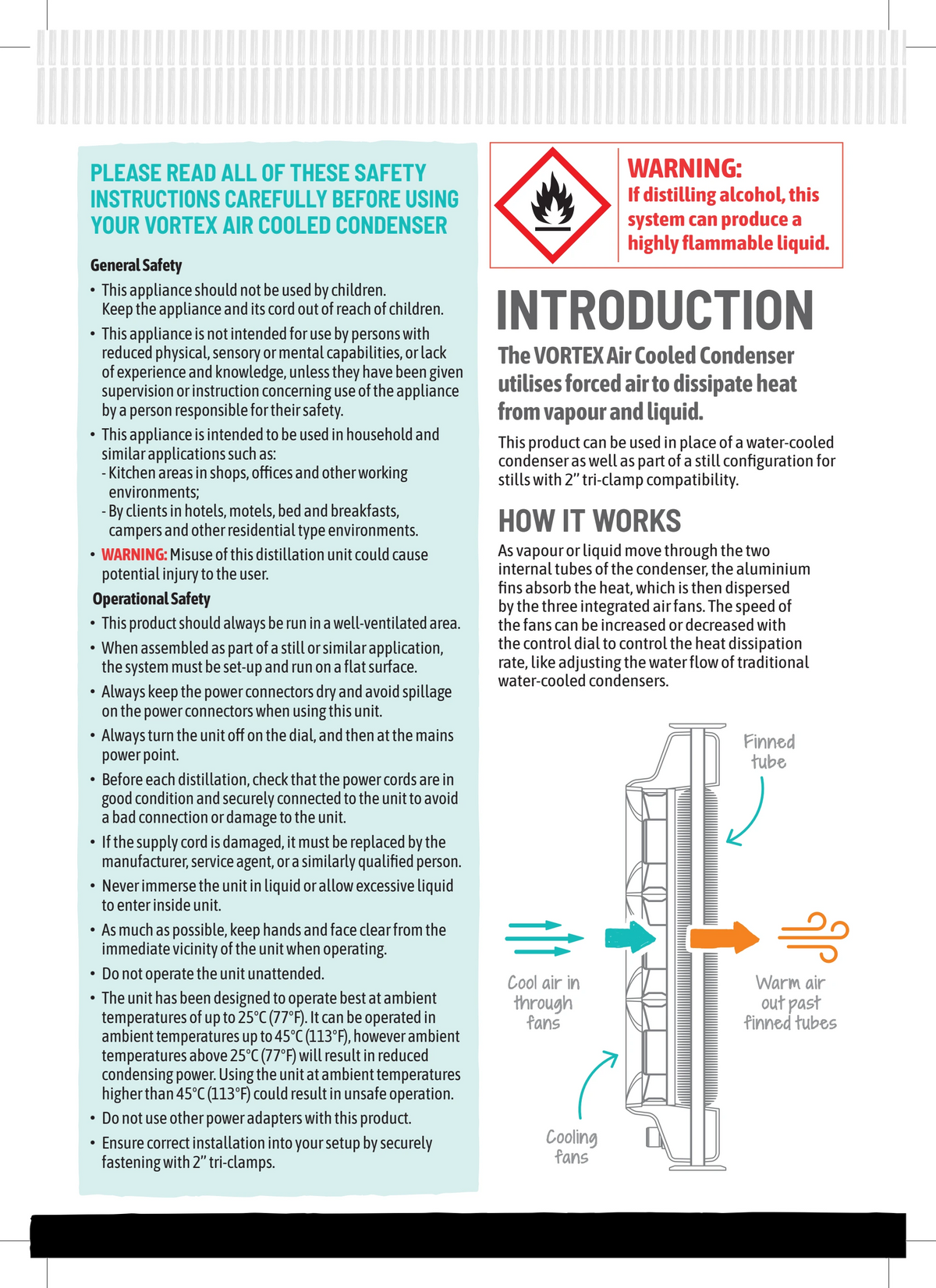

As vapour or liquid move through the two internal tubes of the condenser, the aluminium
fins absorb the heat, which is then dispersed by the three integrated air fans. The speed of
the fans can be increased or decreased with the control dial to control the heat dissipation
rate, like adjusting the water flow of traditional water-cooled condensers.

CAUTION:

Metal fins can have sharp edges.  Use care when handling, assembling, cleaning, or storing this unit, and avoid running fingers along the fin surface.

DISCLAIMER:

Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.

KEY FEATURES:

• Connects to 2" tri-clamp distilling equipment and accessories
• Replaces a water-cooled condenser and/or dephlegmator to support cooling water-free distillation
• 304 grade sainless steel product tubes
• 1060 grade aluminum fins.

SPECIFICATIONS:

• Dimensions: H 37 cm x W 33 cm x D 61 cm
• Weight: 10.6 kg

NOTE:

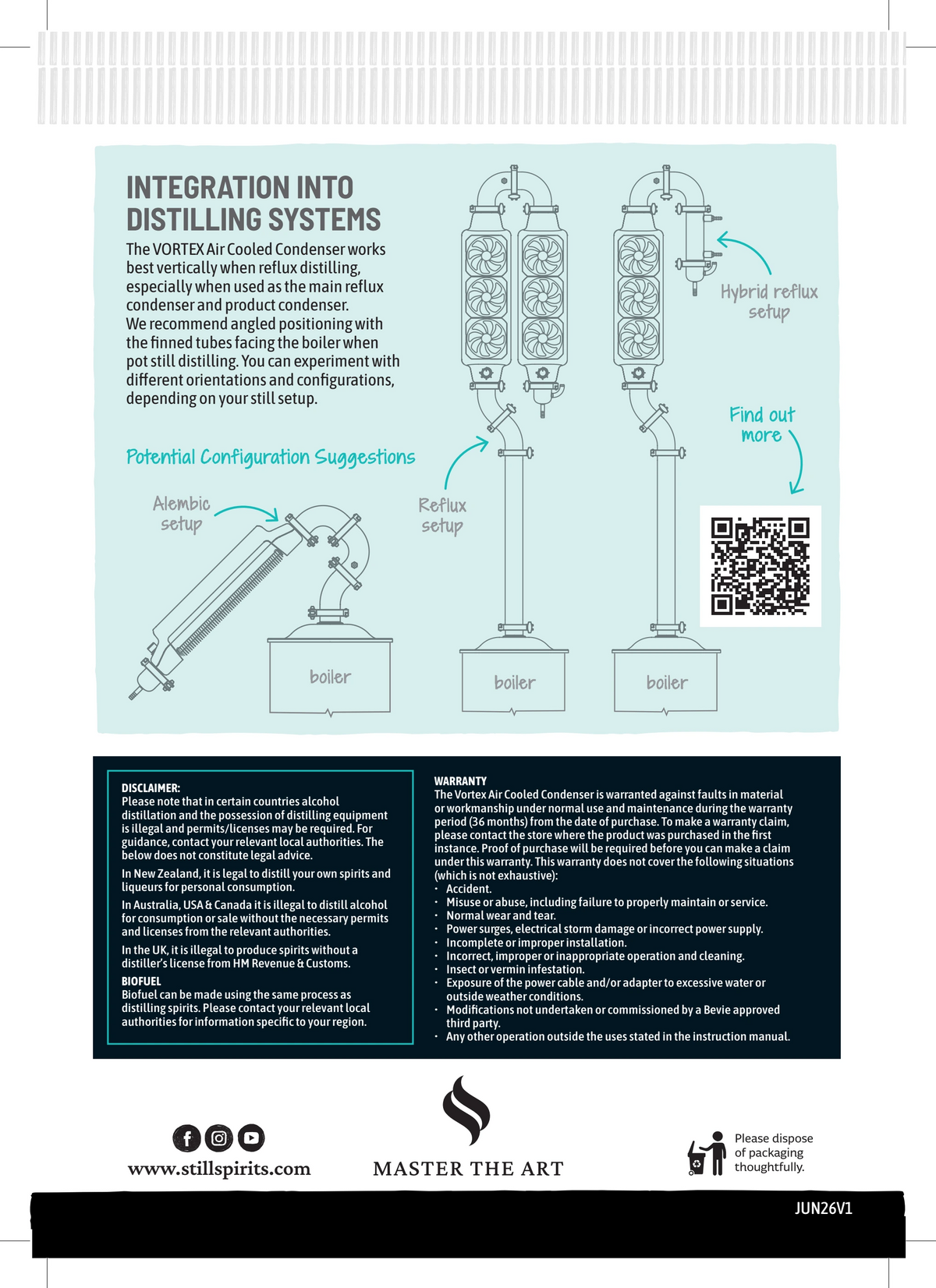

The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
• A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
• A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.

It is recommended external support if:
• Your column & condenser exceeds the above specifications.
• The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
• If the column & condenser is noticeably leaning.

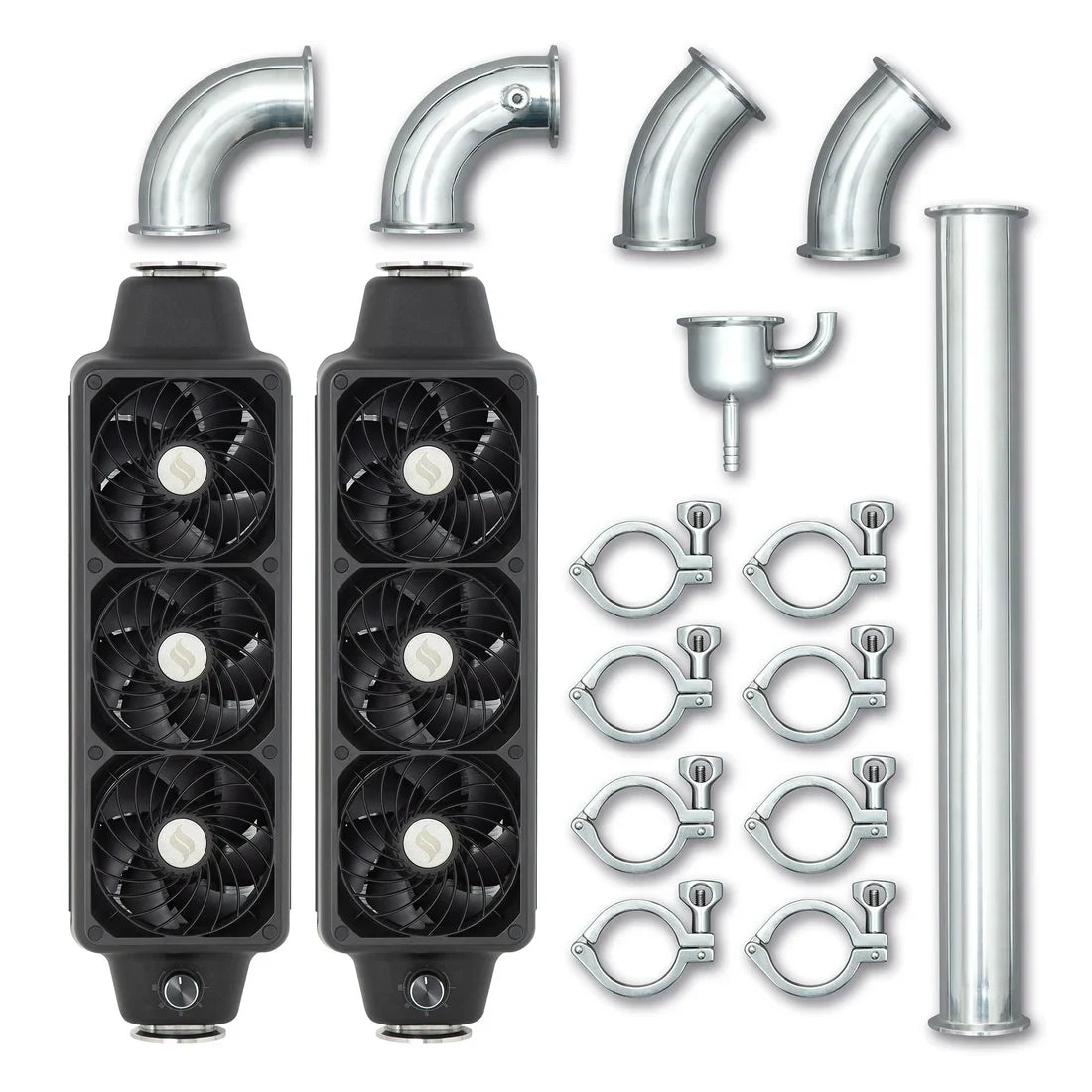

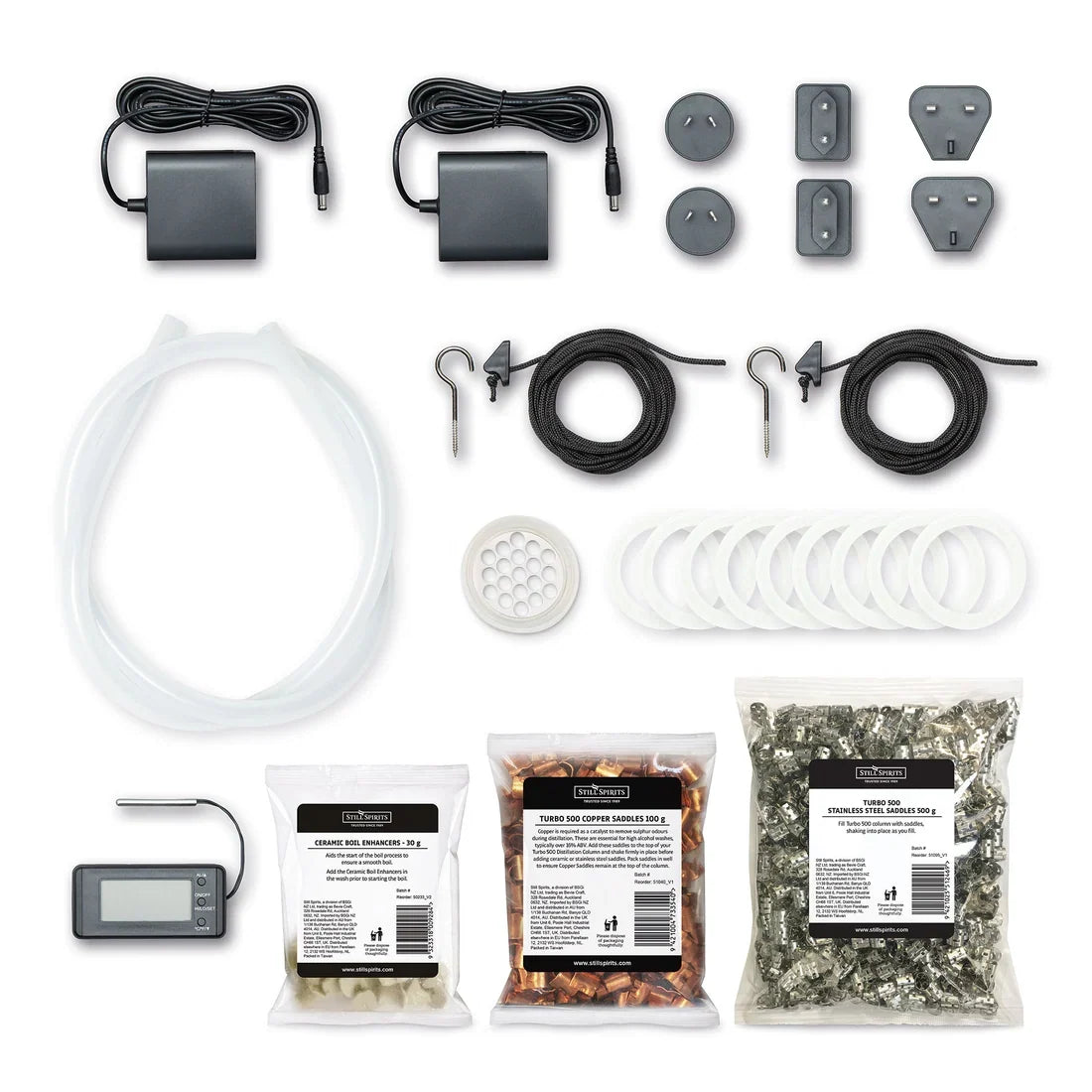

WHAT'S IN THE BOX:

• 2 x VORTEX Air Cooled Condenser Module
• 2 x Universal Power Supply (NZ/AU, US/CA, UK, EU)
• Instruction Booklet
• 500mm Straight Section Tube
• CREATE+ 90° Thermowell Elbow
• CREATE+ 90° Elbow
• CREATE+ Vented Collection Cup
• CREATE+ Beeping Alarm Thermometer
• 2 x CREATE+ 45° Elbow
• 2" Sieved Gasket
• 9 x 2" Silicone Gaskets
• 8 x 2" Tri-Clamps
• 100 g Copper Saddles
• 500 g Stainless Steel Saddles
• Ceramic Boil Enhancers
• Tether System
• 1 m Silicone Tubing.

1. Choose Your Still Setup

Decide how you're distilling - Reflux or Alembic - and replace your water-cooled condenser or dephlegmator with the VORTEX Air Cooled Condenser.

2. Attach to Your Boiler

Connect your reflux column or alembic setup to your lid or alembic dome, and then on to your boiler.

3. Power On

Turn on your boiler and heat your wash. Just before you hit your target temperature, turn on the VORTEX - no cooling water, no fiddling with water flow.

4. Distill

Run your distillation as normal - the VORTEX handles the cooling and condensing.
