Ss UNITANK 26 litre FERMENTER

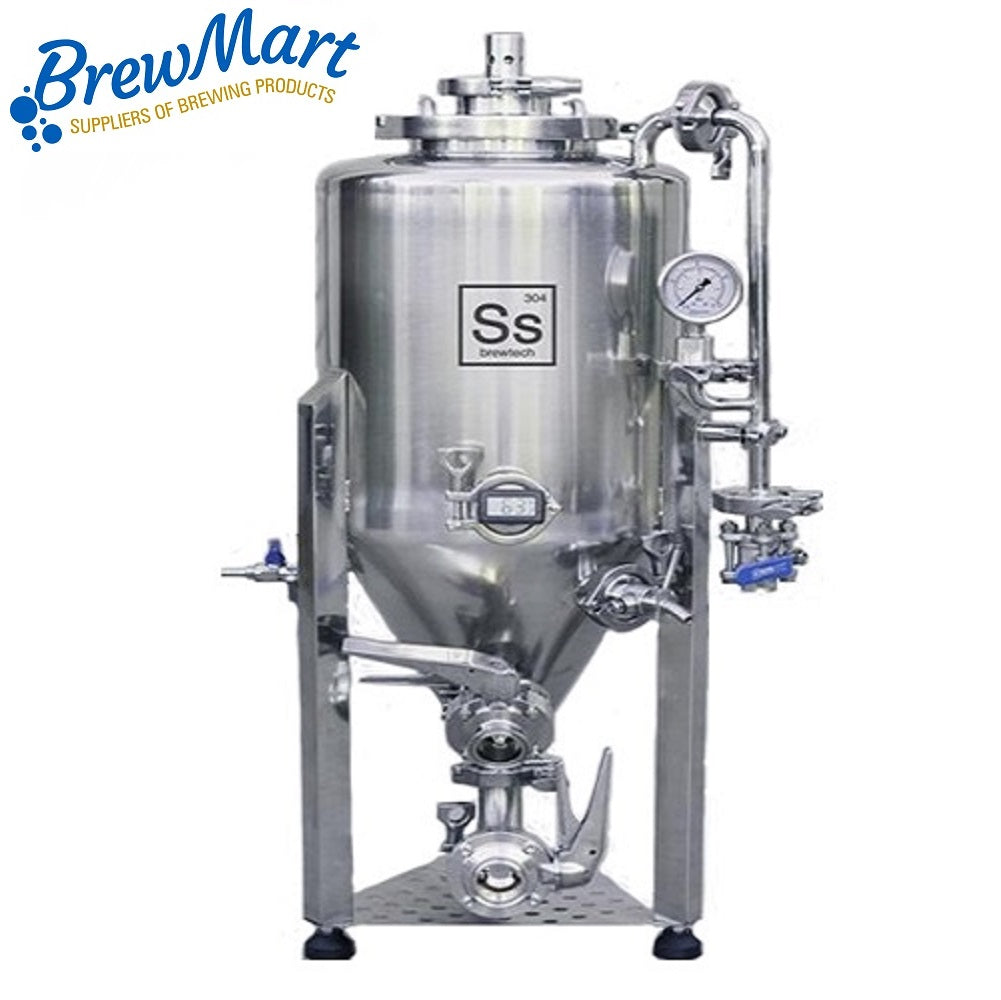

Ss 26 litre Unitank

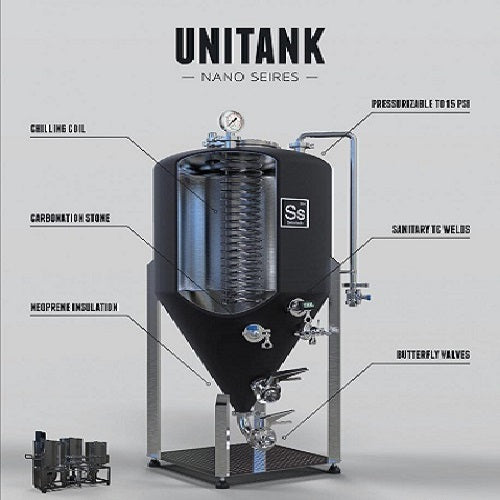

The Nano Series Unitank can be used for fermentation, conditioning, carbonating, packaging, and dispensing / serving all from this one vessel. With 100% Tri Clamp connections, lid mounted immersion chiller coil for temp control and crashing, and the ability to carbonate in-vessel makes this Unitank the very best fermenter on the market. .

This is part of Ss Brewtech's new Nano Series to bridge the gap between home and professional brewing. This unitank is perfect for home brewers who are looking to step up their brewing operation or micro breweries that need a vessel to brew their prototype batches in.

Unitank Advantages

On top of all the fully welded Tri Clamp connections and pro features. The unitank gives the brewer the ability to quickly carbonate beer in under 24 hours using the carbonation stone, while precisely monitoring head pressure. Brewers can then perform a true pressurised and closed transfer to a serving vessel, keg, counter pressure bottle filler or canning machine. Closed transfers significantly reduce the chances of oxidation when compared to open transfers.

Higher pressure limits also gives the user the ability to filter beer directly out of the vessel into a vessel, keg, counter pressure bottle filler or canning machine. Lastly, a unitank with the addition of a spunding valve also gives the brewer the ability to ferment under pressure. Brewers can use the final few gravity points left of active fermentation to naturally carbonate their beer instead of force carbonate. The added feature set and flexibility is why pro brewers use unitanks in their brewing and packaging processes.

Features

• All connections are fully welded Tri Clamp fittings
• 15 psi operating pressure; 30 psi max pressure

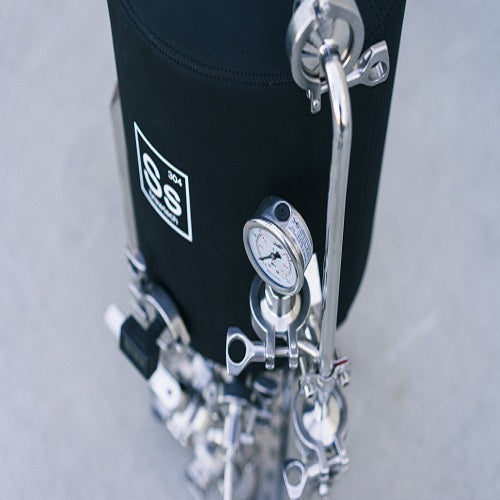

• 1.5 inch Tri Clamp pressure gauge
• 3 inch Tri Clamp versitile port for dry hopping, CIP, and the pressure relief valve
• 1.5 inch Tri Clamp sampling valve
• 1.5 inch Tri Clamp thermowell for LCD thermometer
• 1.5 inch Tri Clamp carb stone with 3/8 in ball valve
• 1.5 inch blow off cane with 1.5 inch Tri Clamp to 1/2 inch NPT ball valve

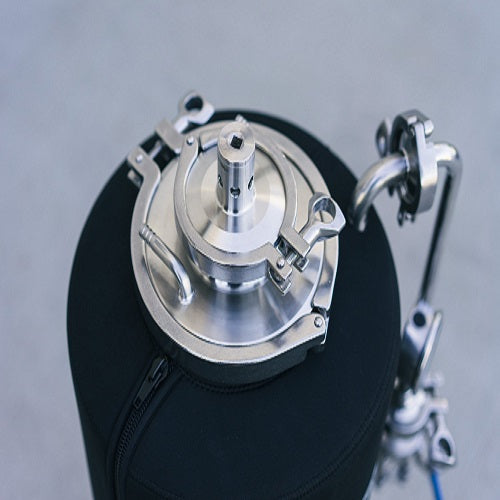

• 6 in Tri Clamp lid with fully welded chiller coil for temperature control
• Neoprene insulation jacket
• Custom Ss butterfly valves with racking arm
• Stainless lower shelf
• Adjustable feet
• 19 litre (5 gallon) operating volume; 26 litre (7 gallon) max volume
• 88.9 cm (35 inch) Tall x 48.26 cm (19 inch) wide
• Made from 304 stainless steel

Ss Brewtech Unitanks can be used to ferment a wide range of batch sizes but cooling is pretty much limited to the operating capacity sized batches since they have fixed coils. These are the average batching recommendations for adequate cooling efficiencies as we recommend having as much liquid to submerge at least 50% of the coil.

• Min Batch size on a 26 litre (7 Gallon) tank would be 15 litres (4 gallons) and is designed for 18.92 litres to 20.81 litres (5-5.5 Gallons)
• Min Batch size on a 53 litre (14 Gallon) tank would be 30 litre to 32 litre (8 - 8.5 gallons) and is designed for 37.8 litre to 39.7 litre (10-10.5 Gallon) batches.
• Min Batch size on a 64 litre (1/2 BBL or 17 gallon) tank would be 43.5 litre to 45.4 litre (11.5 - 12 gallons) and is designed for 58.6 litre (15.5 Gallon) Batches.
• Min Batch size on a 155 litre (1 BBL or 40 gallon) tank would be around 95 litres (25 Gallons) and is designed for 119.2 litre (31.5 Gallon) Batches.
