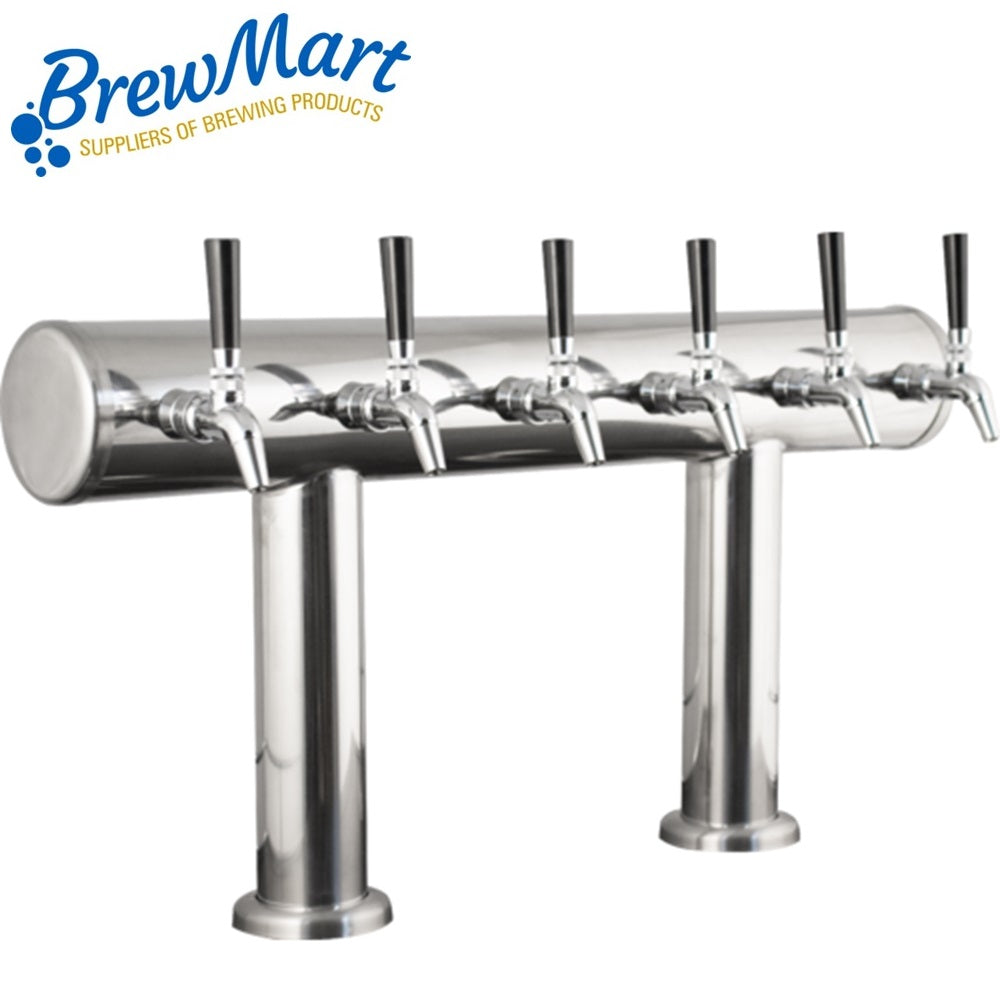

SIX TAP TT BAR TOWER COMPLETE

SIX TAP TT BAR TOWER COMPLETE.

• Stainless steel Double T Bar draft tower with 6 taps.
• Perfect for upgrading an existing Kegerator Plus Double-Wide Kegerator with two individual towers or designing your own home bar or kegerator.
• Mounting hardware, tower collars and gaskets included. The tower includes taps, shanks, tap handles, beer lines and beer disconnects.

• To assemble the tower, remove the dust caps on either side and remove the foam insulation.
• Start with the inner most shank hole on either side and work your way outward.
• It is recommend installing each shank and attaching the draft tubing before moving on to the next shank hole.
• The top section of the tower is 5" in diameter, so most people should be able to reach inside to install the shanks by hand or with the help of a draft wrench.
• When all the shanks have been mounted, reinsert the foam insulation.
• The tower may come with more insulation than needed and may need to be cut thinner before reinserting.

Tower Dimensions:

• 750mm L x 127mm (5") D x 406mm H.
• The centers of the columns are approximately 406mm apart.
