MINI REGULATOR 360 CORE

Download Information
$89.95 AUD
Tax included.
Shipping calculated at checkout.
In stock!

Description

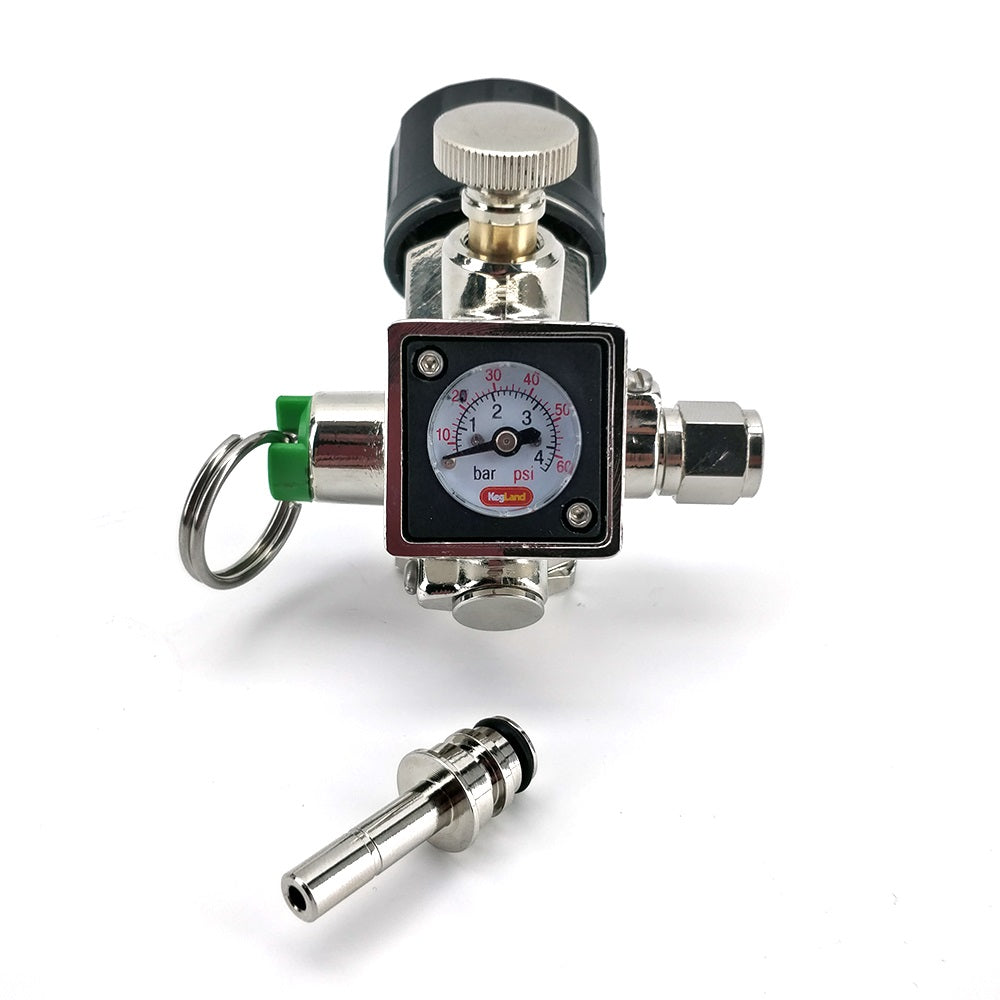

360 Core Mini Regulator.

Features:
- Core Puncturing / Actuator - Zero gas lost to screwing in bulbs or Sodastream style cylinders.
- Interchangeable ball lock disconnect orientations (e.g. 45° Premium Ball lock to 90° Stainless Disconnects)
- 6.5mm duotight compatible hose barb (6.5mm x 8mm duotight) can also suit hose and stepless clamps (e.g. 4mm ID, 5mm ID or 6mm ID hose)
- Heavily Protected Mini Gauge Dial.
- Common Pressure relief valve compatible. (65psi Green PRV as standard, compatible with 35psi Red and 100psi Grey)

Use this adapter to run a Co2 gas bottle with the Mini 306 Core Regulator.

Use this adapter to run a M10 Nitrogen gas bottle with the Mini 306 Core Regulator.

If you are looking for a compact digital gauge with backlight illumination click here.

Replacement seal kits can be purchased here.

WARNING:

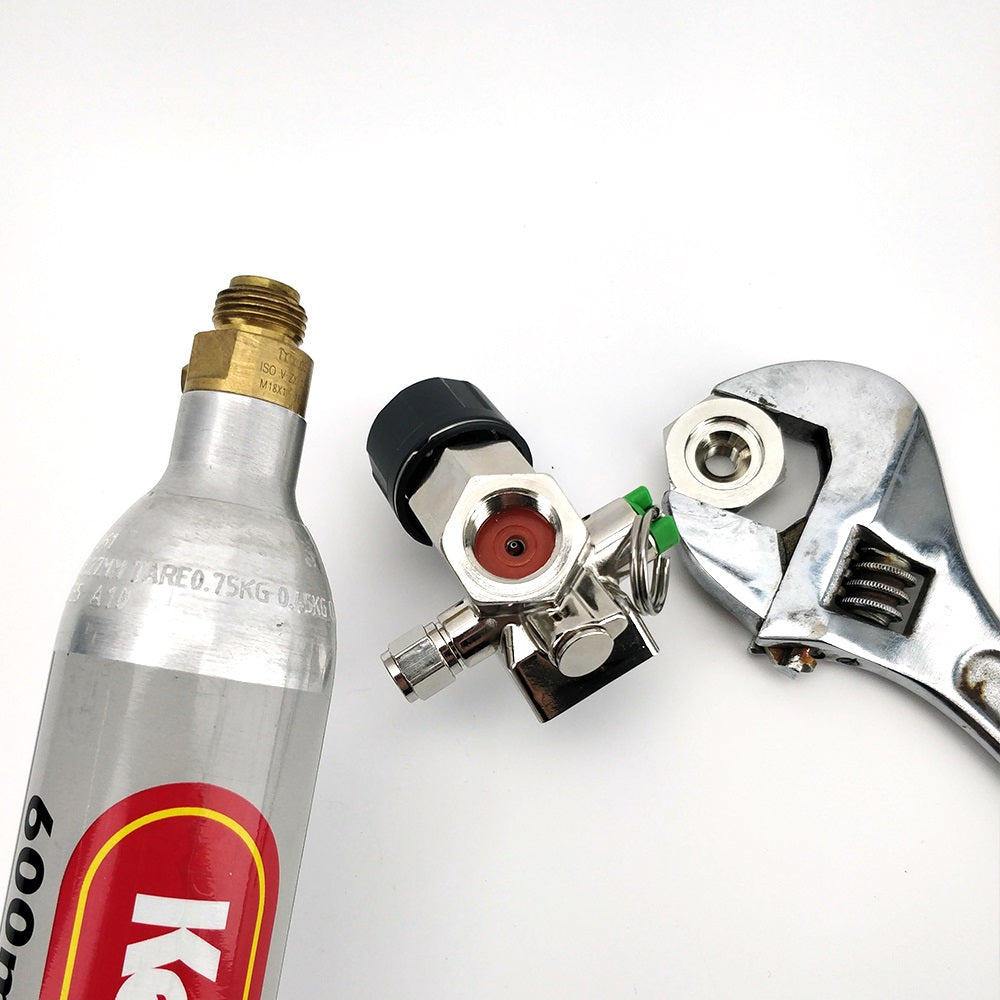

Do not overtighten onto your cylinder. It is recommended that you use a spanner to hold the neck of your Sodastream cylinder while attaching and detaching the Mini 360 Core Actuator Regulator.

The All-New Mini 360 Core Actuator Regulator brought to you by KegLand is the most versatile mini regulator on the market. After much feedback on how to make mini regulators more compact, sturdy and efficient. The brilliant engineers at KegLand have come up with this mini-beast.

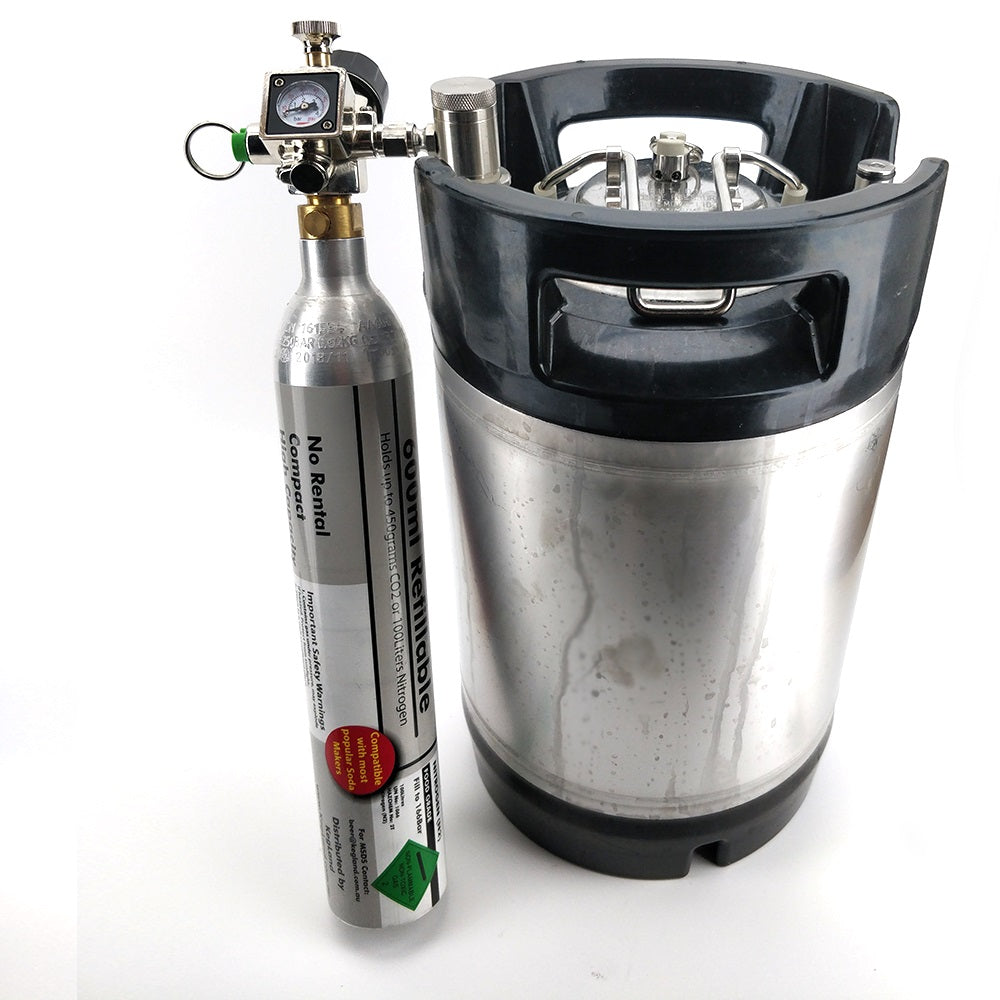

This extremely versatile mini regulator can be used with either an Australian Sodastream Canister, the KegLand Sodastream Compatible Cylinders or the smaller disposable CO2 16g bulbs. If you would like to use the larger 74g disposable bulbs you can purchase the 74g bulb adaptor.

The Mini 360 also doubles as the perfect regulator for a Nitro setup! Just add the Mini 360 Nitrogen Adapter and one of our 2.2L Disposable N2 cylinders, slap a Stout Spout on your SS Nukatap and you are good to go!

Unlike other regulator designs this new design requires no Sodastream adaptor and you do not have the issues of trying to screw the bulb or Sodastream cylinder into the regulator while gas leaks everywhere.  This robust, convenient and superior design is just what you need for any portable keg system.

Features:
- Core Puncturing / Actuator - Zero gas lost to screwing in bulbs or Sodastream style cylinders.
- Interchangeable ball lock disconnect orientations (e.g. 45° Premium Ball lock to 90° Stainless Disconnects)
- 6.5mm duotight compatible hose barb (6.5mm x 8mm duotight) can also suit hose and stepless clamps (e.g. 4mm ID, 5mm ID or 6mm ID hose)
- Heavily Protected Mini Guage Dial.
- Common Pressure relief valve compatible. (65psi Green PRV as standard, compatible with 35psi Red and 100psi Grey)

Includes:
1 x Mini 360 Core Actuator Regulator
1 x 360° 6.5mm duotight compatible hose barb
1 x 360° FFL Fitting for MFL Disconnects
1 x Port end cap
1 x 65psi Green PRV
1 x Sodastream to 16g thread bushing

Upgrade to digital:
We have also made this regulator so you can upgrade to a more accurate digital gauge.  This mini gauge is easier to read and has a backlight so you can also read the pressure easily in the dark.

WARNING:
Do not overtighten onto your cylinder. It is recommended that you use a spanner to hold the neck of your Sodastream cylinder while attaching and detaching the Mini 360 Core Actuator Regulator.



Additional Information

Connecting Gas Cylinders to Mini 360

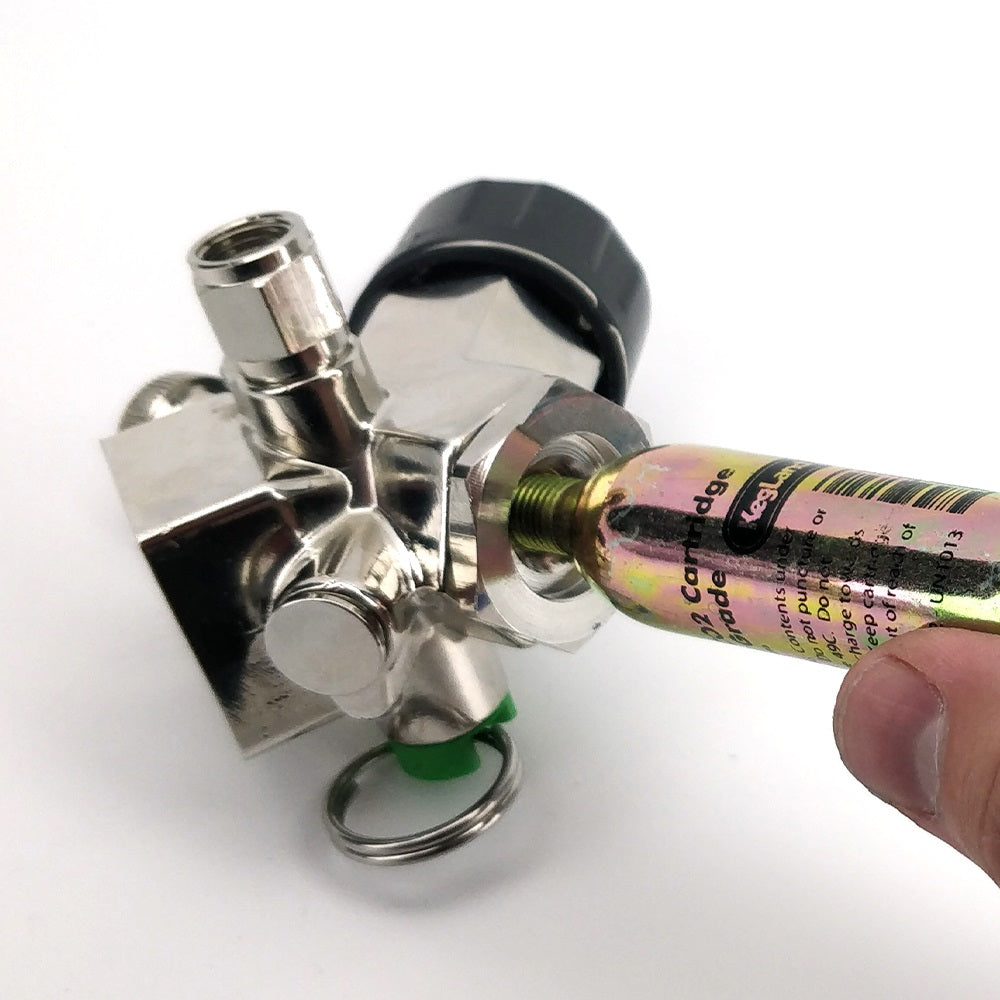

Connecting 16g Disposable CO2 Bulbs.

16g CO­2 cartridges are a great portable option for dispensing on the go with smaller volume kegs. They are not recommended for both carbonating and dispensing, as this would require a large number of gas bulbs, typically about 6g per litre of CO2 for carbonating and 6g per litre of CO2 for dispensing.

Ensure you have the 16g CO­2 reducing bush tightened onto the inlet

Unscrew the thumb screw. Do not unscrew until there is thread exposed on the thumb screw - we want the actuator pin sufficiently retracted so that the bulb can be inserted without piercing the bulb

Screw the 16g CO2 bulb into the reducing bush

Screw the thumb screw in to pierce the CO2 bulb

Ensure a seal is formed between the gas bulb and the regulator. Tighten more if needed but do not over tighten the CO2 bulb into the reducing bush. Over tightening can result in no gas being able to pass through the regulator

Perform a leak test to ensure an adequate seal has been formed.

Connecting 74g Big Bulb Disposable CO2 Bulbs.

74g Big Bulb Disposable CO2 Bulbs are perfect for parties, picnics, and gatherings where you are dispensing more beer than would be viable with the smaller 16g bulbs. They are not recommended for both carbonating and dispensing, as this would require a large number of gas bulbs, typically about 6g per litre of CO2 for carbonating and 6g per litre of CO2 for dispensing.

NOTE: Requires an optional bushing Mini 360 Core Adaptor for 74gram Cartridge/Bulb (G1/2 Male x 5/8-18UNF Female) NOT INCLUDED.

Thread the optional 74g Cartridge Adapter into the Mini 360. You will need to first remove the 16g bulb bushing if installed. Ensure it is snug but not over-tightened

Unscrew the thumb screw. Do not unscrew until there is thread exposed on the thumb screw - we want the actuator pin sufficiently retracted so that the bulb can be inserted without piercing the bulb

Screw the 74g Big Bulb CO2 bulb into the reducing bush

Screw the thumb screw in to pierce the CO2 bulb

Ensure a seal is formed between the gas bulb and the regulator. Tighten more if needed, but do not over-tighten the CO2 bulb into the reducing bush. Over-tightening can result in no gas being able to pass through the regulator

Perform a leak test to ensure an adequate seal has been formed

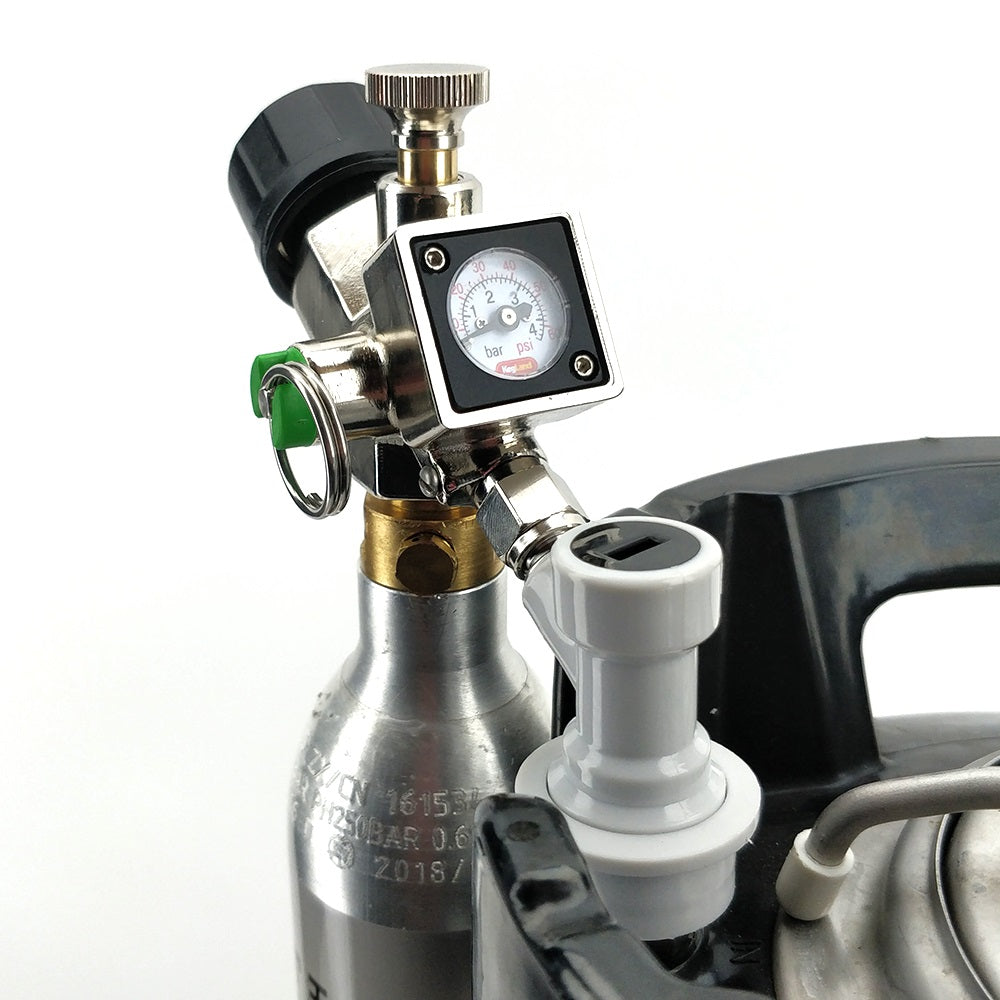

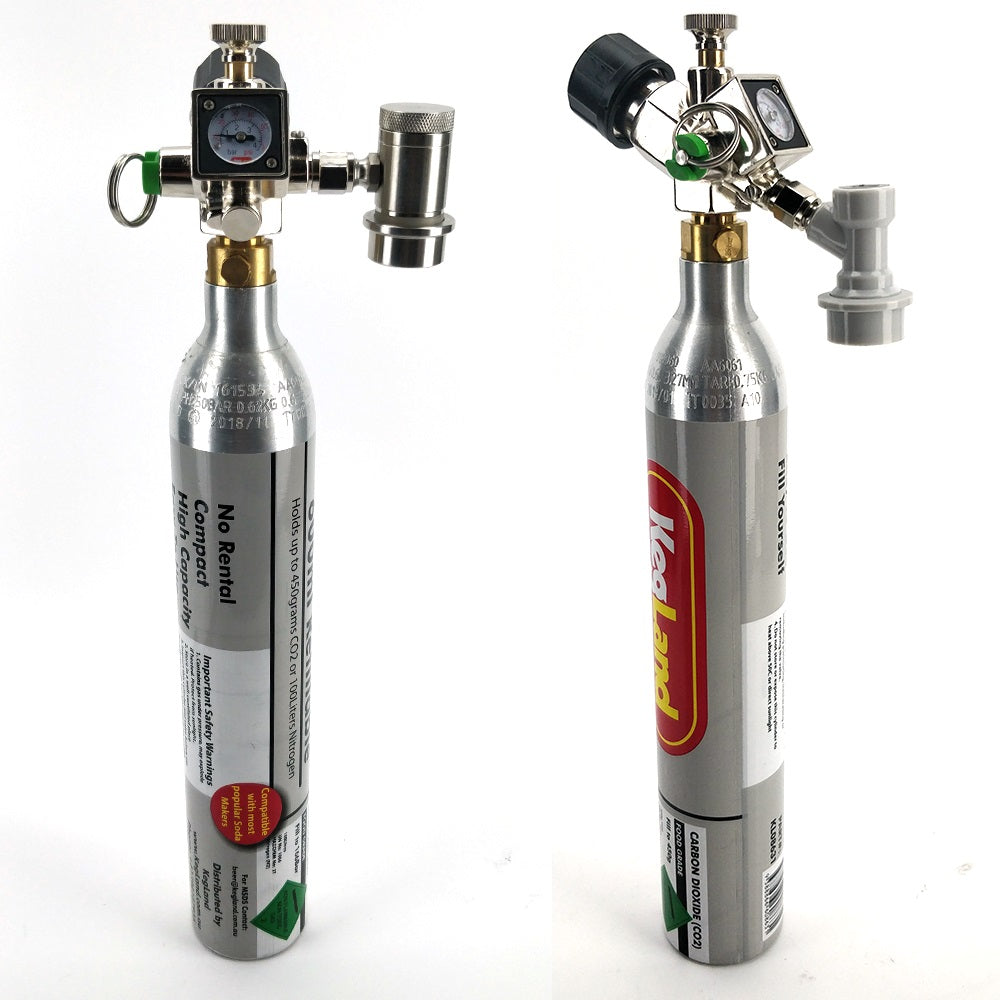

Connecting Sodastream and Sodastream Compatible Cylinders.

If you were looking for a more cost-effective but still portable CO2 source than CO2 bulbs, a Sodastream cylinder or Sodastream Compatible Cylinder can be used. This doesn’t require an adaptor to be used. Using a Mini 360 Regulator with a Sodastream Compatible Cylinder can also be a great option for kegerators or fermenting chambers if space is limited.

Unscrew the 16g bulb reducing bush on the inlet.

Unscrew the thumb screw. Do not unscrew until there is thread exposed on the thumb screw - we want the actuator pin sufficiently retracted so that the bulb can be inserted without engaging the poppet of the Sodastream cylinder

Screw the Sodastream cylinder into the regulator, making sure to hold the neck of the Sodastream cylinder in place while attaching and detaching

Screw the thumb screw in to depress the valve on the Sodastream cylinder

Ensure a seal is formed between the cylinder and the regulator. Tighten more if needed, but do not over tighten the Sodastream cylinder into the reducing bush. Over-tightening can result in no gas being able to pass through the regulator

Perform a leak test to ensure an adequate seal has been formed

Connecting M10 Disposable Nitrogen Cylinders.

The Mini 360 Core Actuating Regulator is a fantastic option for regulating nitrogen from a 2.2L Nitrogen Disposable Gas Cylinder (N2).

NOTE: Requires an optional bushing Nitrogen Adaptor for Mini 360 Core Regulator NOT INCLUDED

Thread the optional 74g Cartridge Adapter into the Mini 360. You will need to first remove the 16g bulb bushing if installed. Ensure it is snug but not over-tightened

Unscrew the thumb screw. Do not unscrew until there is thread exposed on the thumb screw - we want the actuator pin sufficiently retracted so that the bulb can be inserted without engaging the poppet of the Sodastream cylinder

Screw the disposable M10 threaded N2 cylinder into the regulator, making sure to hold the neck of the cylinder in place while attaching and detaching. Do not overtighten. These are a face sealing bushing so they do not need to be super tight to seal. Over-tightening the bushing or the cylinder can cause damage to the seal and can also block the flow of gas.

Screw the thumb screw in to depress the valve on the N2 cylinder

Ensure a seal is formed between the cylinder and the regulator. Tighten more if needed, but do not over-tighten the N2 cylinder into the reducing bush. Over-tightening can result in no gas being able to pass through the regulator

Perform a leak test to ensure an adequate seal has been formed.
