KEGERATOR XL - 1 TAP GRANDE WITH GUINNESS TAP

Kegerator XL Premium for dispensing 50 litre kegs of Guinness.

• Includes one stainless steel Guinness® dispensing stout beer tap to help you achieve the perfect pour when serving Guinness® and other stout beers.
• All stainless steel contact dispense parts in the premium kegerator ensures head retention and a pure taste.
• Utilizes digital temperature control and fan forced cooling for one of the largest temperature ranges on the market (-05-+28°C)
• Spacious interior easily accommodates one 50 litre keg, or four 19 litre home brew kegs.
• Can be converted into an all-refrigerator using the included adjustable shelve for additional refrigerated storage.

Kegerator Series XL Premium

Purpose-built for when space is at a premium.

Most Kegerators require 100mm space left on each side because the heat dispensing coils are located.

This extra spacing causes a problem for some customers that are wanting to fit the Kegerator into a very tight cabinet area.

The Kegerator XL Premium has solved this problem by moving the heat dispensing coils to the rear of the Kegerator where they are open to the air.

When you get a KegMaster™ XL Premium you get more than just a higher capacity kegerator, including:

• Built in rollers for easy moving – removeable and upgradeable to castors
• Reversible Door – orient to open how you like
• Font Fan with speed control – keeps your font cold and runs more quietly
• Internal light – handy for inspecting keg connections
• Fits standard fonts – choose how many taps you require
• Suitable for free-standing installations – can also be installed under counters
• R600a Refrigerant – environmentally friendly

Single Tap Tower (font) Kit includes

Single Tap Brushed Stainless Steel Font

Stainless Steel Short Shank

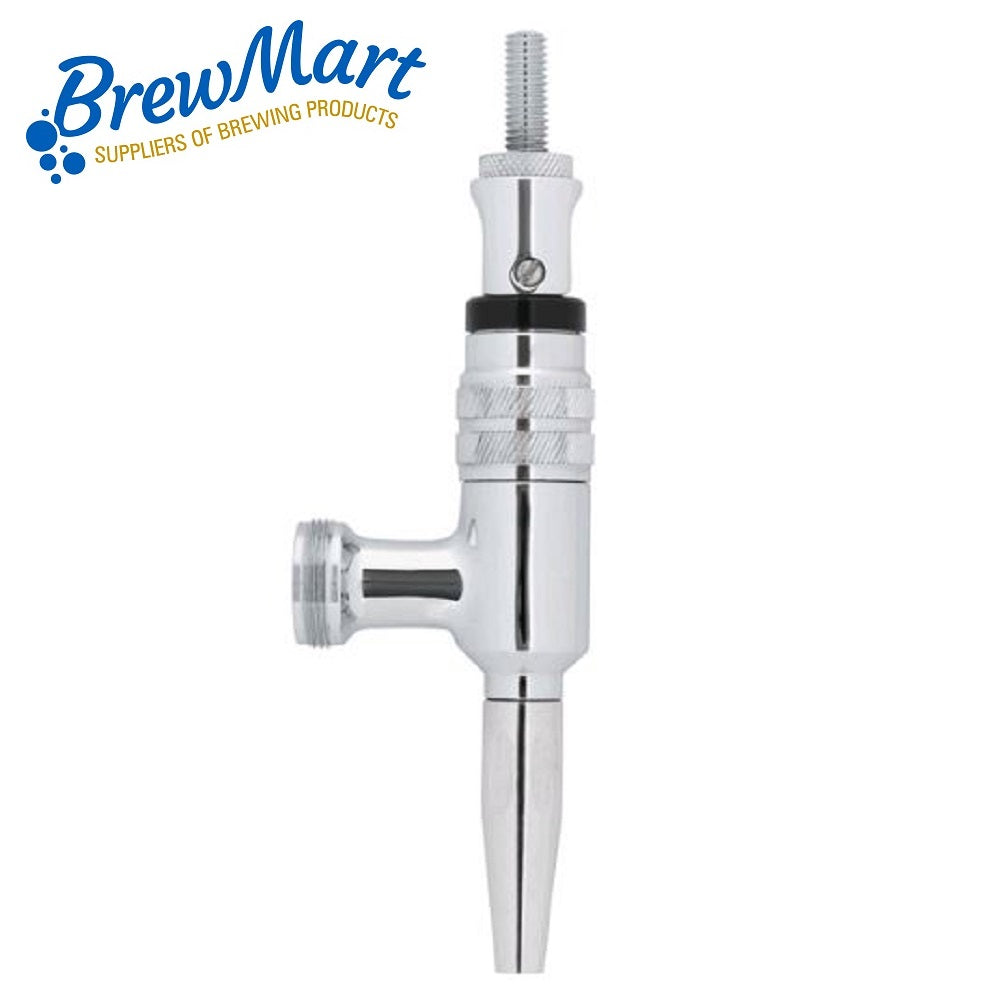

Stainless Steel Guinness Tap

Stainless Steel Self Closing Spring

Black Plastic Tap Handle

3 Meters of 4 mm ID x 8 mm OD Beer Line

4 x Metric M5 stainless screws to secure the font to the fridge.

Duotight FFL Fitting

Premium Threaded Beer Disconnect

250gm Keg and Line Cleaner

Specifications:

• Height:  850 mm with rollers 830 mm without rollers 890 mm with castors
• Width:   600 mm
• Depth:   640 mm
• Internal Height:   724.9 mm
• Internal Width:   511.9 mm
• Internal Depth:   405.1 mm
• Volume:   160 L
• Weight:   43 Kg
• Power:   220-240V 50Hz
• Climate Class:   T
• Refrigerant:   R600a (40g)
• Insulation:   Cyclopentane

Packaged dimensions:

• H 88cm W 66cm D 69cm

Recommended Setback:

• Our KegMaster Series Premium needs good airflow to help it achieve optimum cooling power.
• The ideal setback, or spacing, is as per below (when facing the fridge):
• No setback required on the sides
• No setback required at the back, though we suggest 5-10cm for good airflow circulation
• No setback required on the top, can be installed flush to a counter top
• No setback required underneath*
• No setback at the front
• Can not be enclosed into a cabinet, it must have vents
• *It is recommended to have your Series Premium KegMaster elevated from the floor, in case any moisture settles under it, the spacing will help dissipate it.
•  Setting the Calibration Factor on the Keg Master Series Premium Kegerator:
• If your kegerator is freezing the chill plate on the inside with a thick layer or ice, it is recommended to set the calibration at -3 and see if the situation improves.
• If the KegMaster™ is not cold enough, it is recommended to set it to +2 and see it the situation improves.

• Press and hold both the “Cooler” and “Warmer” buttons for 5 seconds until the temperature display flashes SC.
• Release those buttons and press the “°F/°C” button.
• The display now shows the calibration factor, and you can change it with the “Cooler” and “Warmer” buttons.
• Once it is at the desired value press the “°F/°C” button again to save it.

Must read:

• Ventilation: the fridge MUST have proper ventilation around itself in order to cool properly and to maximise its lifespan
• Out of direct sunlight: the fridge MUST NOT be in direct sunlight
• Indoors fridge: this fridge is designed to be installed inside, in a nicely ventilated area
• Class T: this fridge has been tested under the tropical climate conditions

These fridges are designed for indoor, domestic use. For outdoors usage, we recommend a KegMaster Solstice.
