KEGERATOR - 3 TAP TEE ULTRA GRANDE

3 Tap UltraTap Kegerator Grande.

We supply ALL the equipment, you supply the drink.

• All NEW KegMaster™ Premium Kegerator is a powerful and efficient refrigeration unit, with the larger capacity to fit four 19 Litre kegs or one 50 Litre commercial keg.
•
• Pour beer, cider, wine, premixed drinks, soda water, kombucha, espresso martinis and more. With the KegMaster™ Premium kegerator, it’s your bar so you always get to choose what’s on tap!
•
• With built in low profile rollers KegMaster™ Premium kegerators are simple to move into position to start enjoying your beverages.
•
• Includes MKX Regulators for dispensing CO2 to serve your draft system with precision and reliability.
•
• UltraT Fonts from Keg King are the perfect way to give your kegerator or bar service area sleek, professional looking visual appeal that’s affordable and long lasting.
•
• Constructed from 304 stainless steel for clean, easy to maintain font surfaces.
•
• With UltraT Fonts, the taps align straight across the top of the T bar, so there is no crowding as is common on standard fonts, and no need to use wrap around drip trays at the font base.

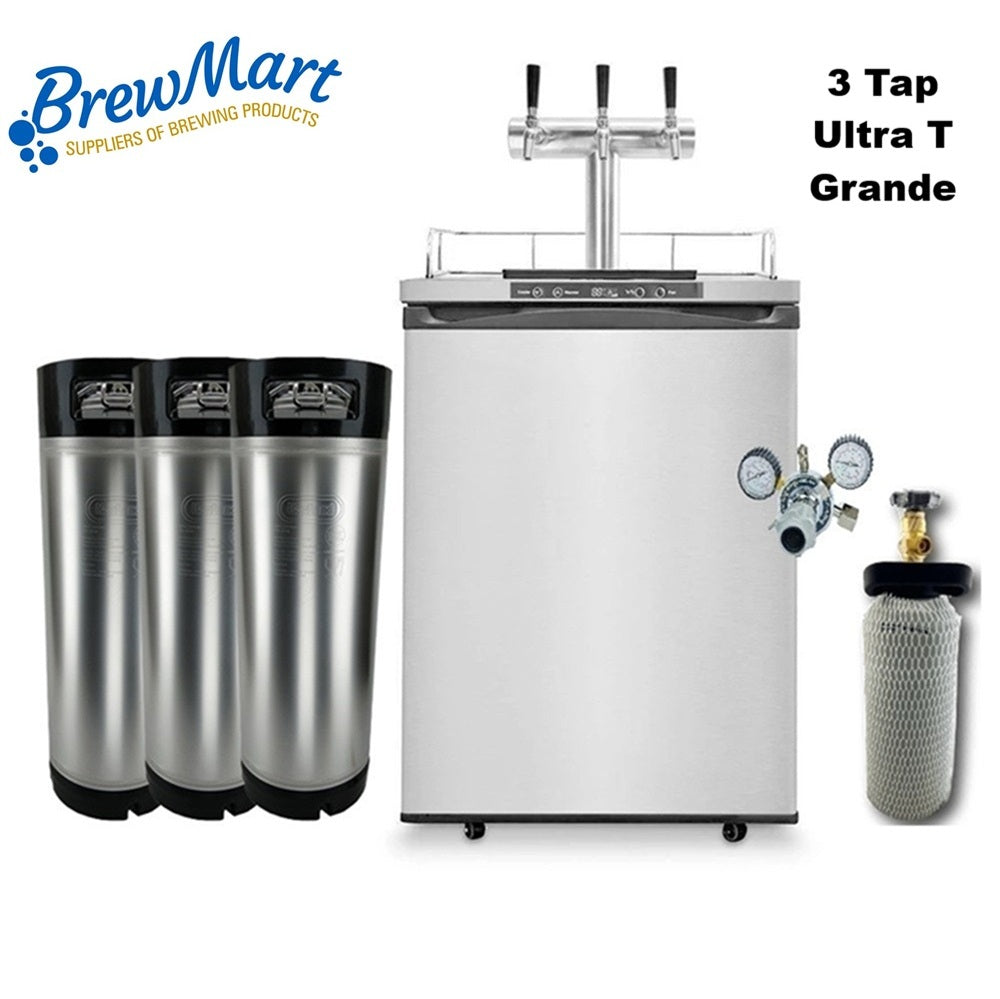

This Kegerator Grande includes:

1 x Kegerator

1 x Co2 Regulator

1 x 2.6 kg Co2 Gas Bottle - Full

3 x 19 litre Kegs

3 x Ultratap Forward Sealing Laminar Flow Stainless Steel Faucets with handles

3 x Short shanks

3 x Angle barbs with silicone seals

3 x EvaFresh Beer Lines pre-installed in the font

3 x Premium MFL Variety Black Liquid Ball Lock Disconnects

3 x Premium MFL Variety Grey Gas Ball Lock Disconnects

6 x DM Push In Fittings FFL to 5/16 (8mm)

2 x DM Push In Gas Line Splitter.

1 x 5 in 1 Tap Tool

1 x Silicone Font Gasket

1 x Pack of mounting hardware.

We have preassembled the fonts with stainless steel short shanks and beer lines for you.

All you need to do is attach the taps with the included 5 in 1 tap tool, screw on the tap handles and push-in the beer lines to your disconnects.

When you get a KegMaster™ Premium you get more than just a higher capacity kegerator, including:

• Built in rollers for easy moving – removeable and upgradeable to castors
• Reversible Door – orient to open how you like
• Font Fan with speed control – keeps your font cold and runs more quietly
• Internal light – handy for inspecting keg connections
• Fits standard fonts – choose how many taps you require
• Suitable for free standing installations – can also be installed under counters
• R600a Refrigerant – environmentally friendly

Specifications:

• Height:  850 mm with rollers 830 mm without rollers 890 mm with castors
• Width:   610 mm
• Depth:   660 mm
• Internal Height:   724.9 mm
• Internal Width:   511.9 mm
• Internal Depth:   405.1 mm
• Volume:   160 L
• Weight:   43 Kg
• Power:   220-240V 50Hz
• Climate Class:   T
• Refrigerant:   R600a (40g)
• Insulation:   Cyclopentane
• Packaged dimensions: H 88cm W 66cm D 69cm

Recommended Setback:

• These KegMaster Series Premium needs good airflow to help it achieve optimum cooling power.
• The ideal setback, or spacing, is as per below (when facing the fridge):
• No setback required on the sides
• No setback required at the back, though we suggest 5-10cm for good airflow circulation
• No setback required on the top, can be installed flush to a counter top
• No setback required underneath*
• No setback at the front
• Can not be enclosed into a cabinet, it must have vents

 Setting the Calibration Factor on the Keg Master Series Premium Kegerator:

• If your kegerator is freezing the chill plate on the inside with a thick layer or ice, it is recommended to set the calibration at -3 and see if the situation improves.
• If the KegMaster™ is not cold enough, it is recommended to set it to +2 and see it the situation improves.

• Press and hold both the “Cooler” and “Warmer” buttons for 5 seconds until the temperature display flashes SC.
• Release those buttons and press the “°F/°C” button.
• The display now shows the calibration factor, and you can change it with the “Cooler” and “Warmer” buttons.
• Once it is at the desired value press the “°F/°C” button again to save it.
