ICEBANK G40.1 ICEMASTER

IceMaster G40.1 - Glycol Chiller / IceBank- Digital Control

• Commercial grade compact chilling dispensing solution. The G40.1 offers high performance for small to medium volume customers. Suits to small bars, cafés, restaurants or even the increasingly popular travelling bars.
• It is also not uncommon for some craft brewers to use this device to control the fermentation temperature of their vessels, providing they have a thick insulated jacket. We would not recommend this product for over 500 Litre capacity vessels.
• Comes with flooding impeller pump as standard, all enclosed inside the unit for efficiency and ease in transport. The G40.1 is also completely enclosed including the removable lid, this will aid in cooling performance due to less heat loss.

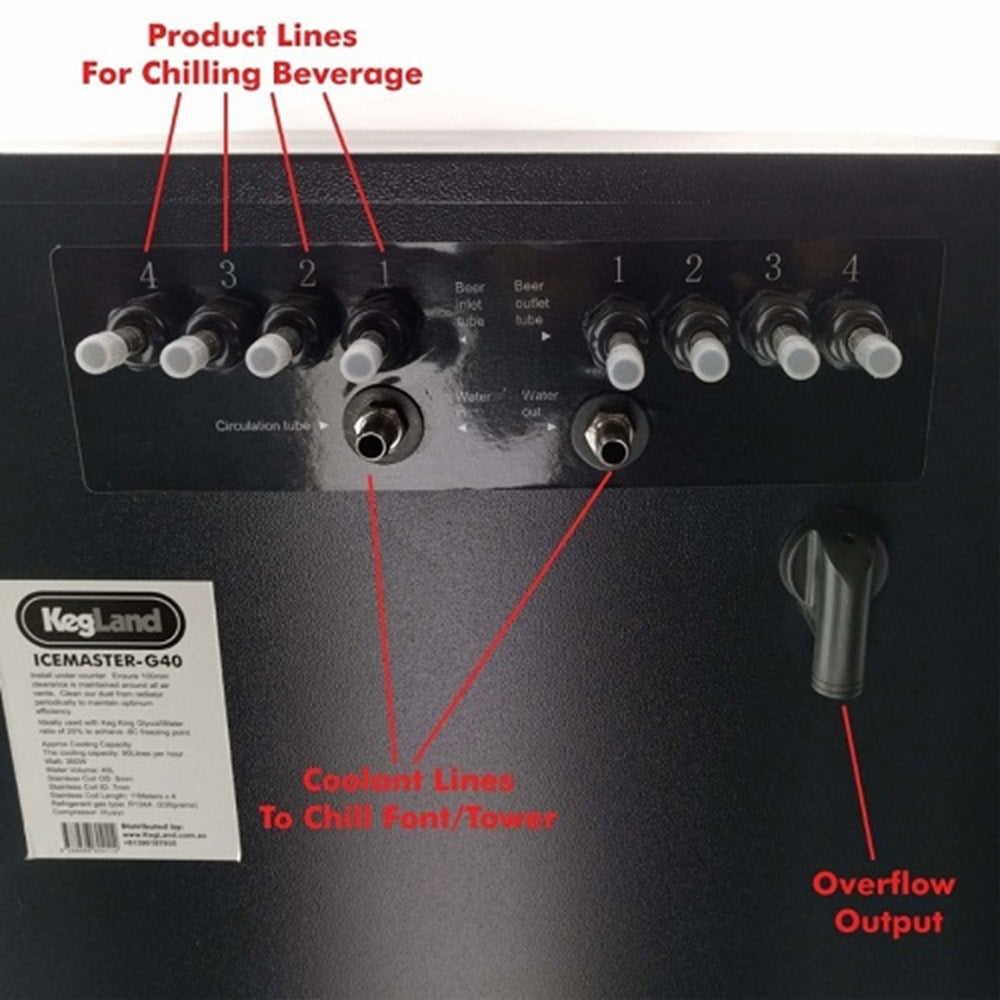

• 8 mm 304 Stainless tubing ideal for compression fittings to 6 mm barbs for product lines located at the side of the unit making them easier to install under commercial bar tops where height restriction is limited.
• Ideally suited to be used for a glycol system, but can be used as an Icebank.
• We would like to make clear that with one pass through, through the G40.1 will only be able to drop the temperature of your product by 15° C. Hence we highly reccomend if you are dispensing in an area that will be over 30° C, that you use the G40.1 only for two product lines, and double them up through the unit. e.g. Passes through the chiller twice in a loop.

Specifications

• Pump: Impeller+Pump Combination 35 watts (6.5 meter Head, approx 2000 Litres per hour)
• Product Lines: 4 Stainless Steel Product Lines (4 x 11 meter Coils)
• Product Line Size: 304 Stainless Steel Coils (8 mm OD x 7 mm ID)
• Cooling Output Line: 10 mm OD 8 mm ID
• Icebank: 22 kg Icebank (when using water)
• Tank Capacity: 40 Litre Water Capacity
• Cooling Capacity: 780 watt Cooling Capacity.
• Typical Product Cooling Capacity: 60 Litres in the first hour, 35 Litres each additional hour
• Compressor Wattage: 260 watt
• Refrigerant: r600
• Dimensions: 410 mm x 410 mm x 660 mm
• Digital Temp Controller
• Icebank G40.1 uses a STC-1000 temp controller.
