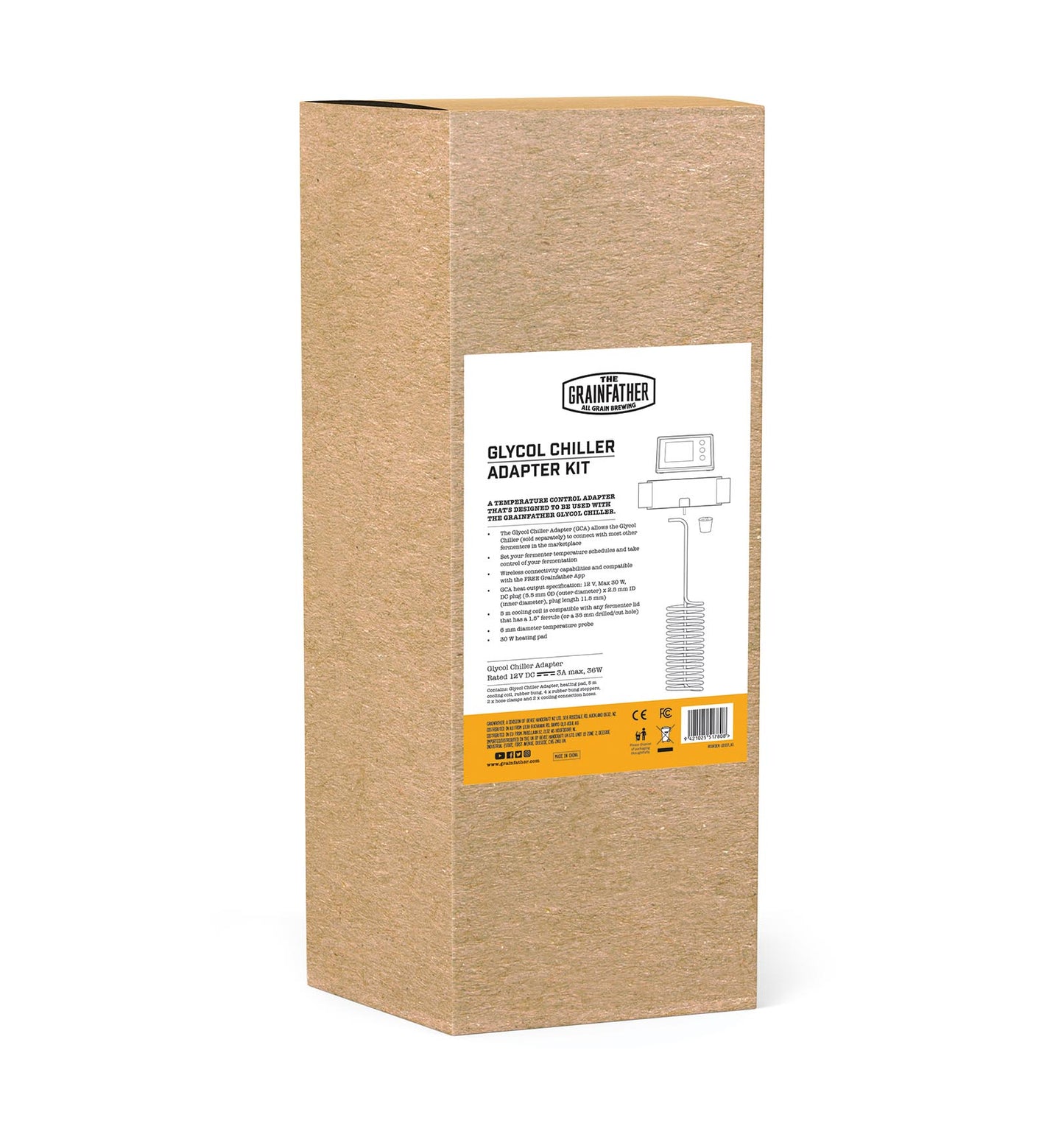

GRAINFATHER CHILLER ADAPT KIT

Grainfather Chiller Adaptor Kit

A Temperature Control Adapter that’s designed to be used with the Grainfather Glycol Chiller. The Glycol Chiller Adaptor (GCA) means brewers can now use the Grainfather Glycol Chiller with almost any fermenter. From plastic to stainless, buckets to barrels or conicals, the GCA makes accurate temperature control more accessible.

The Glycol Chiller Adapter (GCA) allows the Glycol Chiller (sold separately) to connect with most other fermenters in the marketplace.

Set your fermenter temperature schedules and take control of your fermentationWireless connectivity capabilities and compatible with the FREE Grainfather App.

Includes:

• 5m Stainless Steel Cooling Coil
• Heating Pad
• Glycol Chiller Adapter (Temperature Controller)
• Rubber Bung
• 4 Rubber Stoppers
• 2 Hose Clamps
• 2 Cooling Connection Hoses.

Grainfather Chiller not included.

Specifications

12 Volt3 pin 2 meter (6.5 ft) power cord4 Ghz wireless internetColour display screen

Heating pad

30W220mm (8.7”) length80mm (3.1”) height2m (6.5ft) cableBlack silicone material80°C safe maximum temperatureIncludes hook and look strips to attach to your fermenter

Cooling coil

304 stainless steel5m (16.4ft) cooling coil6mm (0.02”) thickness119mm (4.7”) diameter520mm (20.5) height9mm (0.4”) outer diameter10mm (0.4”) inner diameter

Rubber bung

32mm (1.3”) width, 43mm (1.7”) diameter, 38mm (1.5) height.designed to fit fermenters with a 38.1mm (1.5’’) ferrule lid

Temperature probe

35mm (1.4”) length6mm (0.2”) diameter+/-2000°C 0.010°C temperature probe sensitivity and range2m (6.5ft) cable length

Hoses:2 x 2m (6.5ft) with insulation8mm (0.3”) inner diameter Note: Also included are 2 x hose clamps and 4 x rubber bung stoppers (for the cooling coil and hoses when not in use)
