FILTER - MINIJET BON VINO

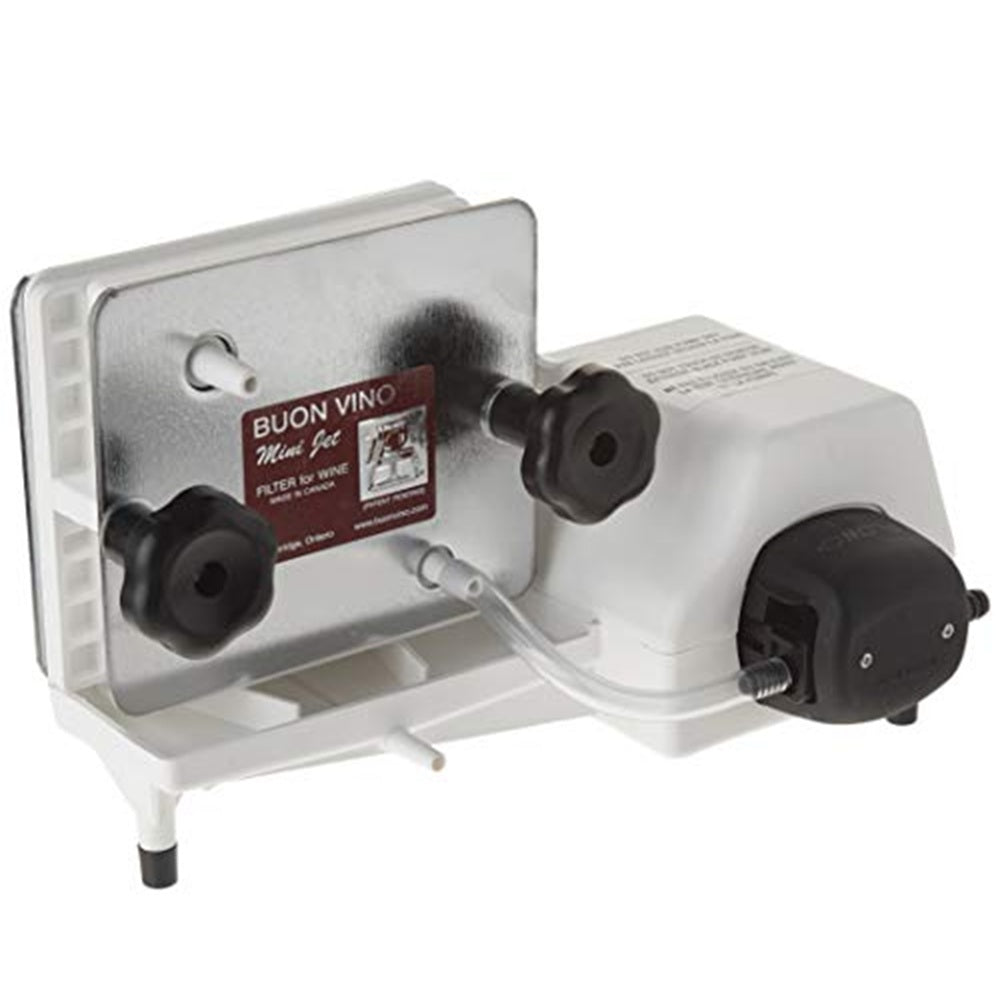

Filter - Minijet Bon Vino

Instructions:

• Clean your machine before and after each use. It is recommended that you flush 5 gallons of clean water through the pump before and after use. It is a good idea to use warm water to help release residual sugar.

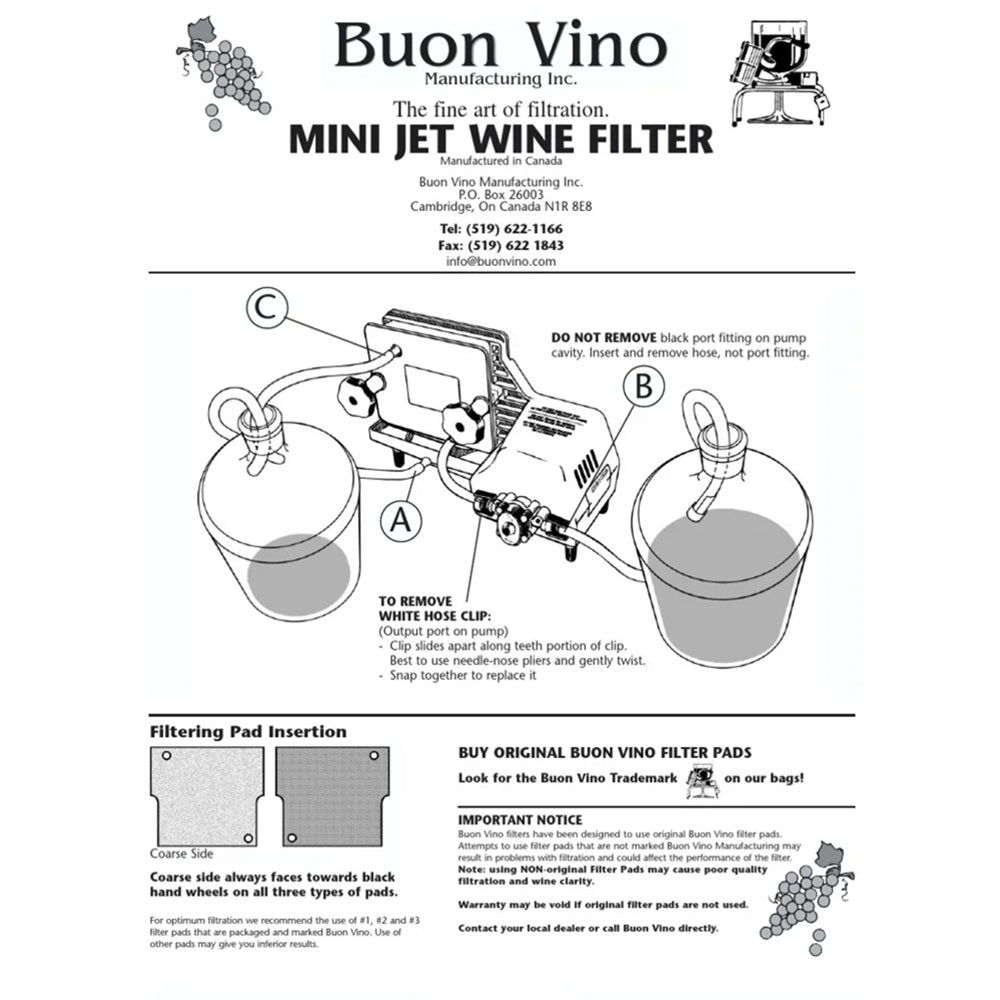

• Are your filter pads installed properly? Ensure that all holes on the unit and pads are lined up. Mini Jet – coarse side of the pad faces handwheels.
• Did you wet your filter pads before inserting them into the machine? This allows the plates to create a seal around the outside of the pads when you tighten down the plates.
• Lubricate the following parts with petroleum jelly (Vaseline) to create a good seal on the filter pads. Mini Jet – tightening screw threads on the 2 bolts for the handwheels.

Technical Specifications:

• Self-prime pump.
• Incorporated motor.
• Filtering surface 465 square cm.
• Filtering time: 15 minutes per 20 litre jug (approximate).

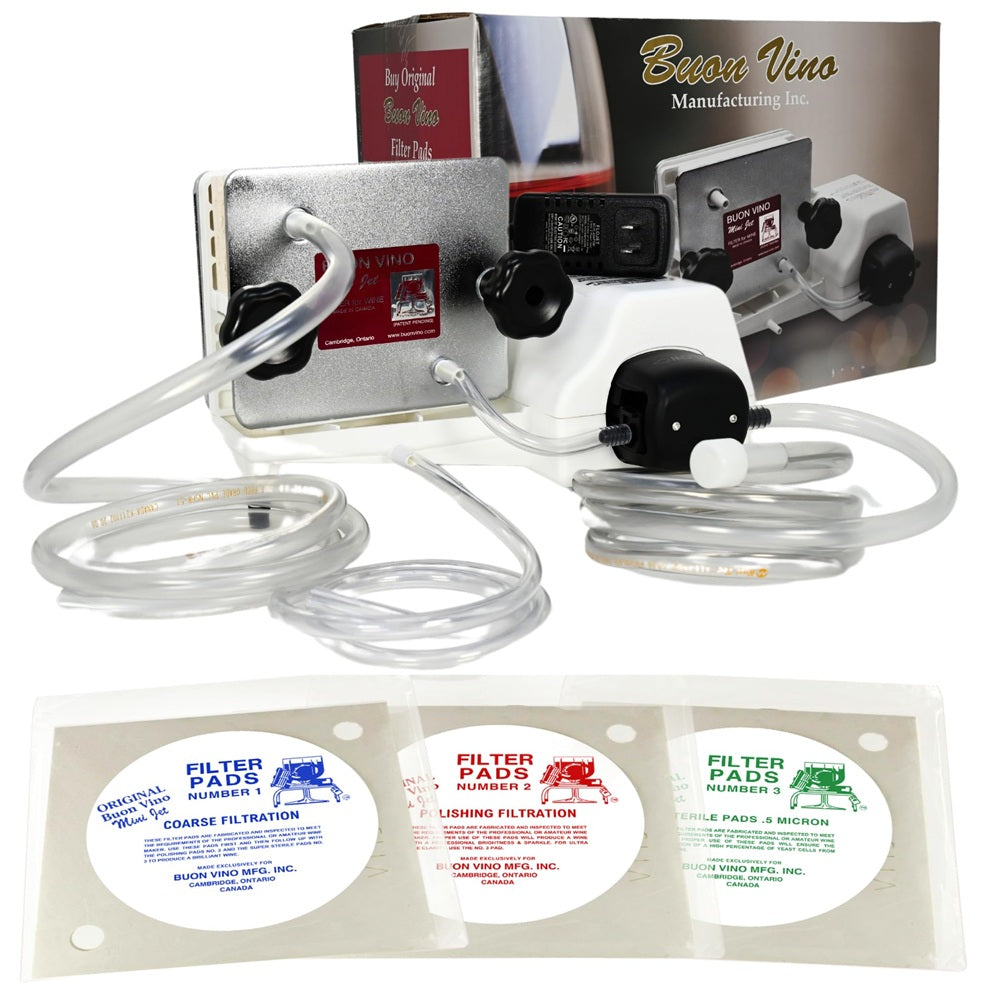

• 3 grades of pads: coarse, polish, and sterilizing.
• Dimensions: 30 cm (length) x 14 cm (width) x 18 cm (height).
• Weight: 3 kilograms.
