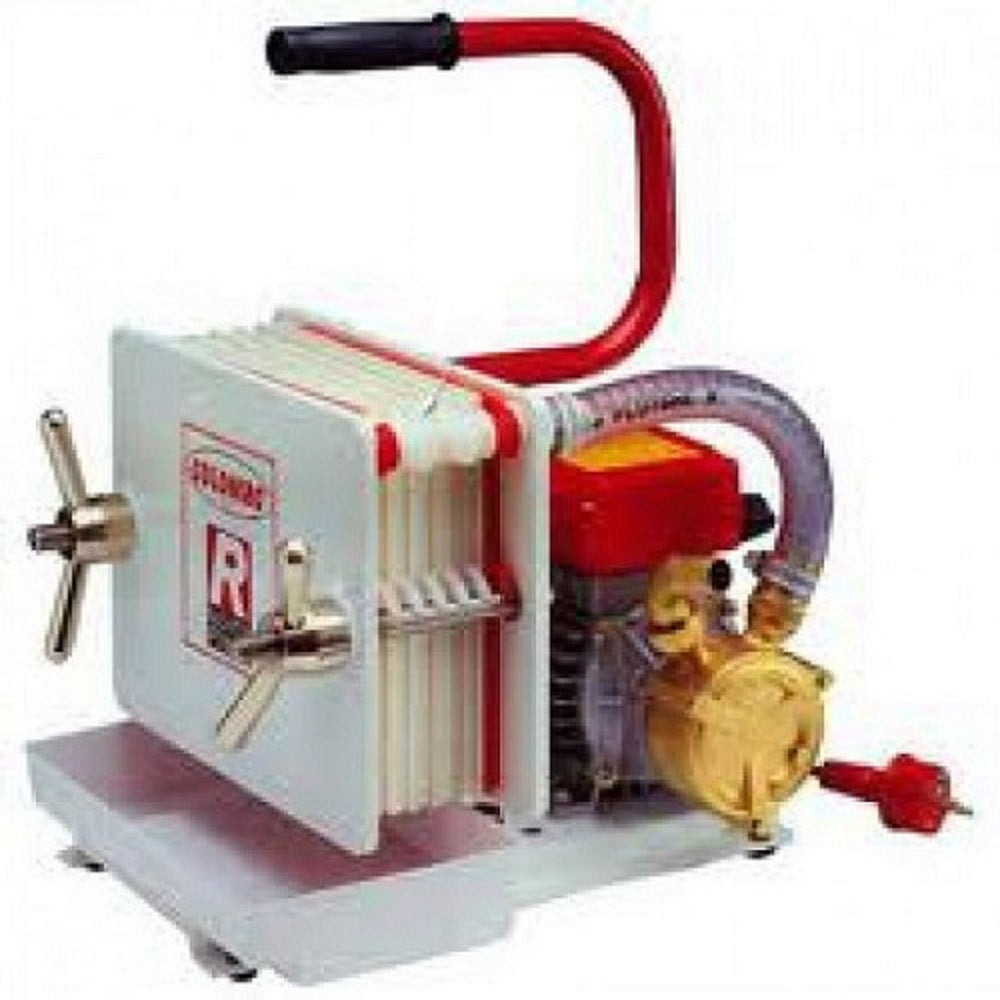

FILTER 6 PLATE ROVER

Filter 6 Plate Rover

• The Rover Colombo wine filter consists of a special electro-pump and filtering system called a pressed layer system for liquids.
• This filter allows users to purify drinks and achieve an excellent level of quality without altering the basic characteristics of the liquid.
• This product is specially suitable for filtering wine, water, infusions, beers, pharmaceutical solutions and perfumes.
• It requires no other maintenance than cleaning.

• The impeller of this new pump is reversed and this is a big innovation compared with previous model.
• The high-quality filter consists of 7 plates made of high quality PVC.
• Quick assembly. Quick filter sheets replacing and significant reduction of liquids spillage during filtering process.
• It is suitable for filtering any food liquid, especially the wine.
• Disconnect the pump from the filter in order to use it as a normal transfer pump.
• Insert a maximum of 12 filter sheets. Use different grades of filter sheets in order to obtain different types of filtration.
• The pump can be also used with less than 12 filter sheets. For example, could be used with 8 filter sheets by removing the extra plates. Filtration quality will be the same, but will decrease the filtration rate per hour.

New Pump With Reversed Impeller Advantages:

• Maximum operating pressure: up to 2,5 bar (against the 2,0 bar of the previous model).
• Higher hydraulic head (increased by 1,5 meters).
• Longer durability of the machine. This is an essential aspect as they are subjected to a
• Continuous operation, due to the filter plates and sheets system.
• Easier manufacturing.
• Less shaking of the wine or of the filtered liquid.
• Patented system.
• Body pump made of bronze.
• The pump is “self-priming” and has been specifically designed for this type of filter.
• Colombo 12 wine pump is powered  an induction motor as guarantee of extra durability.
• The motor achieves 0,5 Hp.

Other Technical Features:

• Power supply: 230 V, 50 Hz.
• Revolutions per minute: 2850 rpm.

Additional Features:

• Off switch for the motor activation.
• Wing knobs for ease of changing the filters.
• Drip tray with hose to immediately deliver the liquid into the main tank.
• Wire hose to link the filtering process to the pump process.
• Sturdy folding handle for easy lifting of the machine.
• Outlet for the liquid.
• Draft filter provided on standard kit.

Specifications:

• 20 x 20 filter pad size
• 200-300 litres hour
• 0.5HP
• Includes 1 set of 6 filter pads
• Weight of unit 16KG
• Filter pads available: Select from the range of Rover filter pads.
• Box weight 18kg.
• Dimensions: 33 x 51 x height 32.
