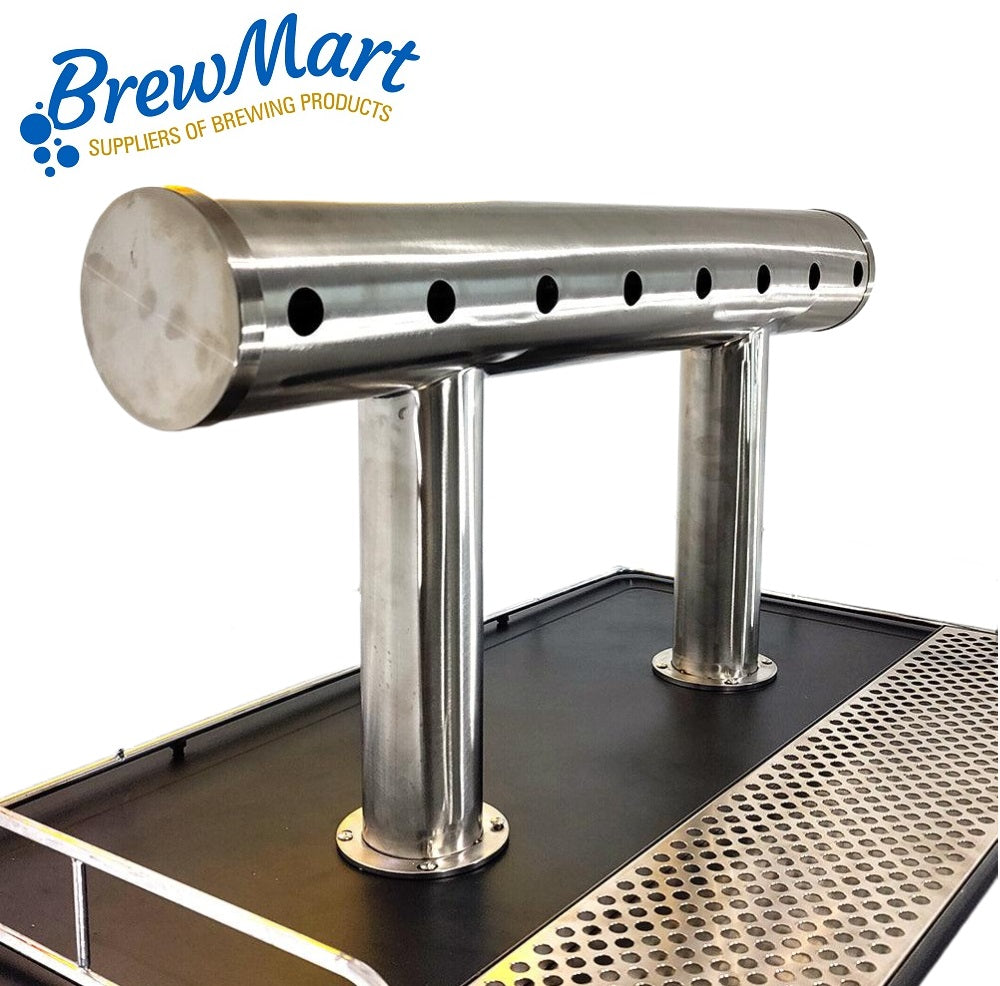

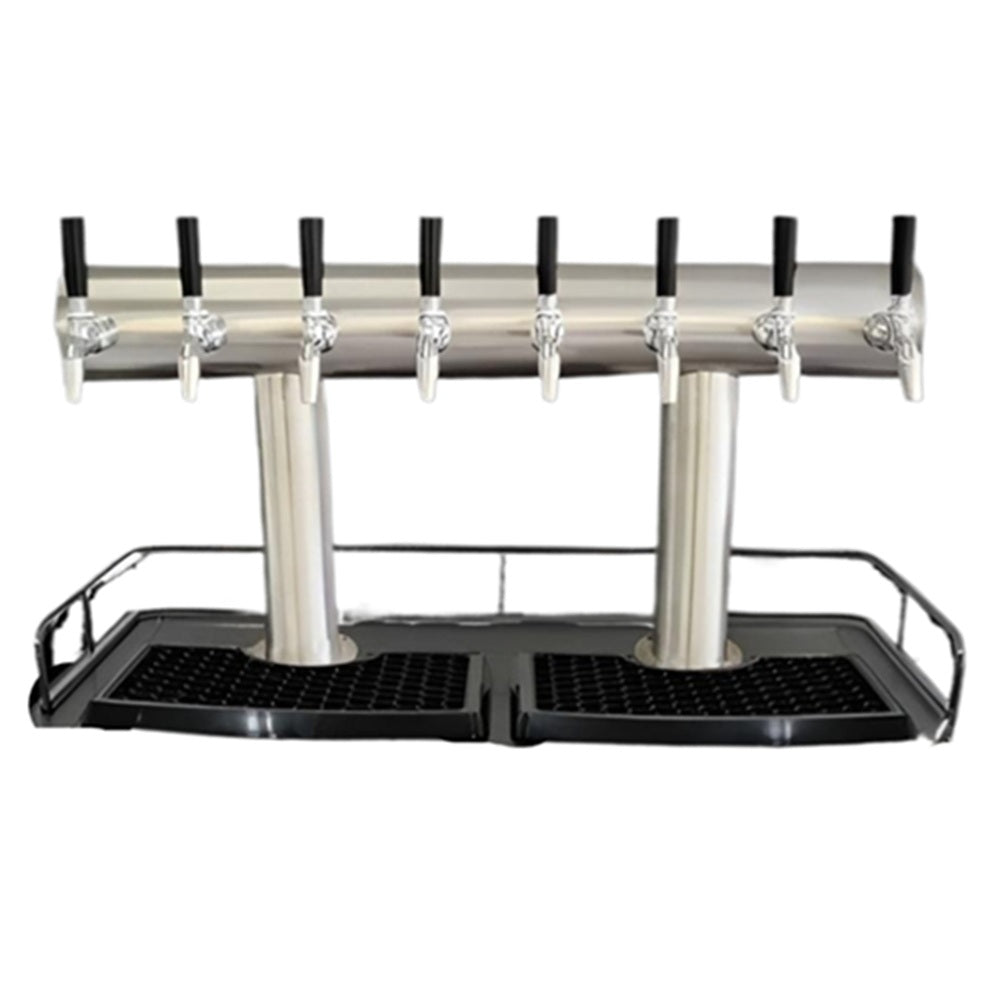

EIGHT TAP TT BAR TOWER COMPLETE

EIGHT TAP TT BAR TOWER.

KegLand TT Bar Font.

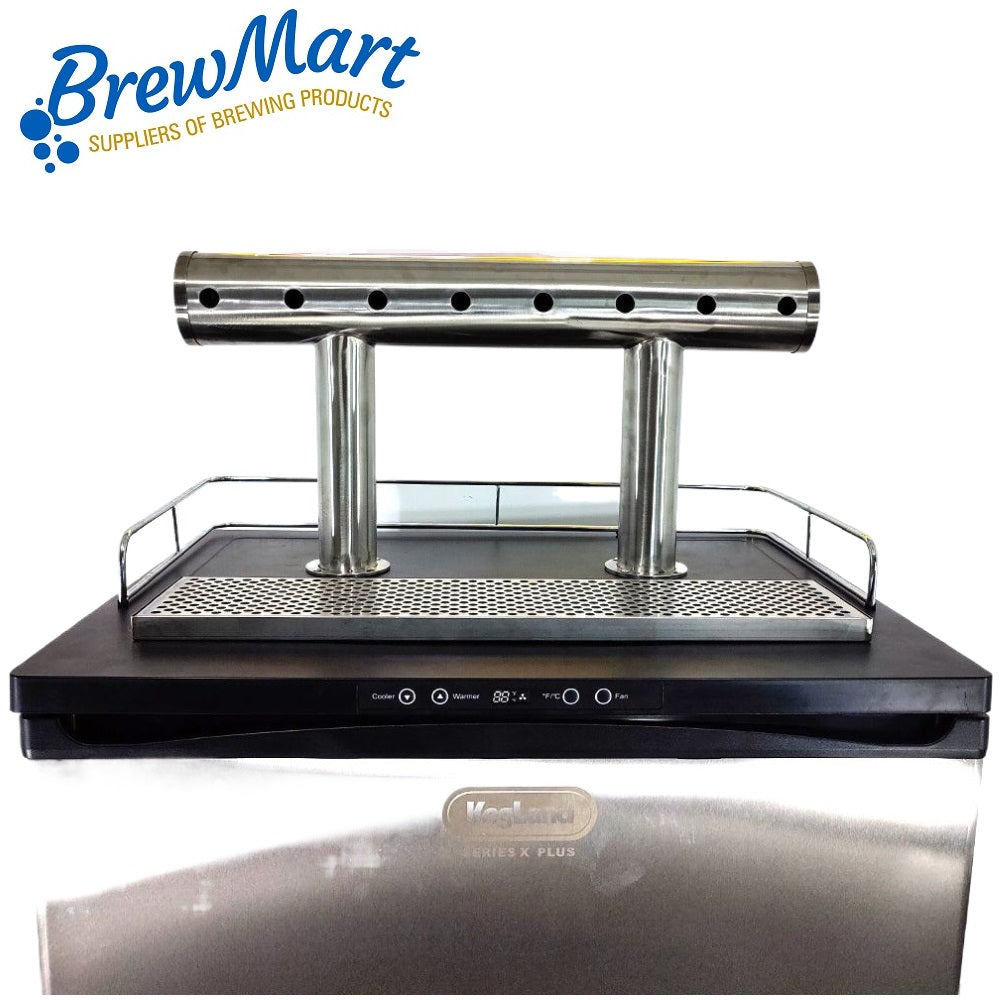

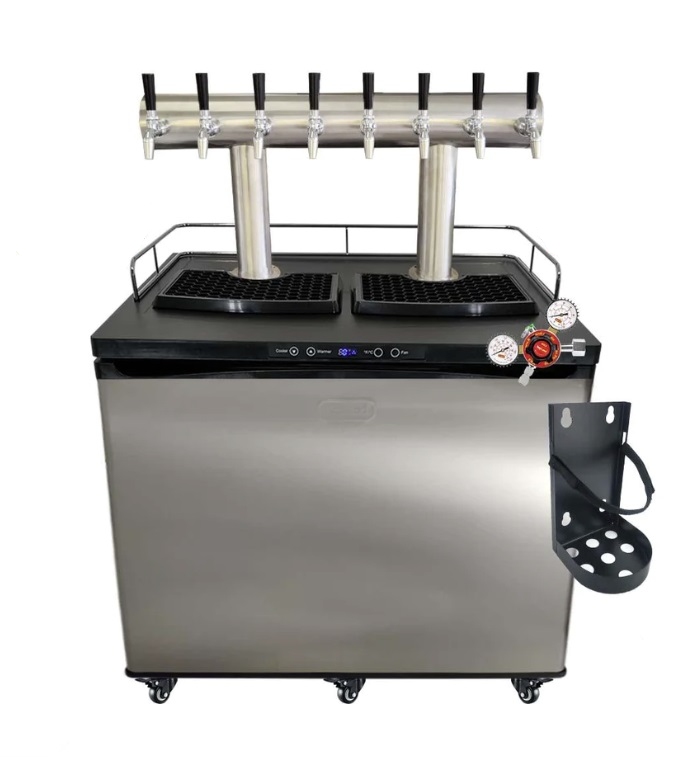

This tower (font) provides ample room for your Nukataps on your brand new Series X Plus or custom Keezer or bench top.

If you're building a draft system with more than four taps (faucets), we highly recommend this KegLand TT Bar Tower.

This tower provides ample room for your NukaTaps and will give your draft setup a much cleaner look than having multiple single-column towers.

Everything is supplied:

1 x Eight tap tower

8 x Nukataps and handles

8 x Shanks and connectors

24 meters of beverage hose.

8 x Liquid disconnects.

Assembly

To assemble the tower, remove the dust caps on either side and remove the foam insulation.

Start with the inner-most shank hole on either side and work your way outward.

Install each shank and attaching the draft tubing before moving on to the next shank hole.

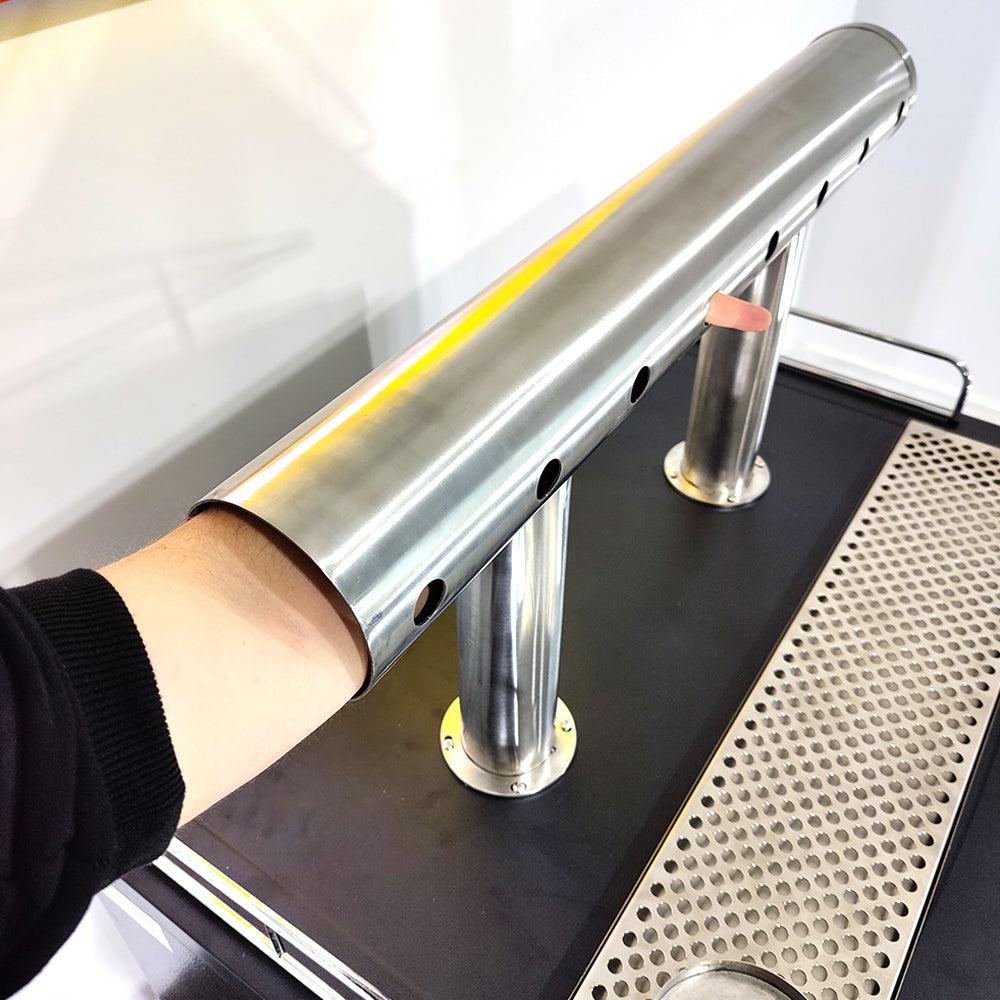

The top section of the tower is 5" in diameter, so most people should be able to reach inside to install the shanks by hand or with the help of a draft wrench.

When all the shanks have been mounted, reinsert the foam insulation. The tower may come with more insulation than needed and may need to be cut thinner before reinserting.

Duotight Compatible Tap Shanks

When it comes to assembly, there's nothing easier than Duotight push-to-connect fittings.

Tower Dimensions:

750mm L x 127mm D x 406mm H.

The centres of the columns are approximately 406mm apart.
