COUNTER PRESSURE BOTTLE FILLER

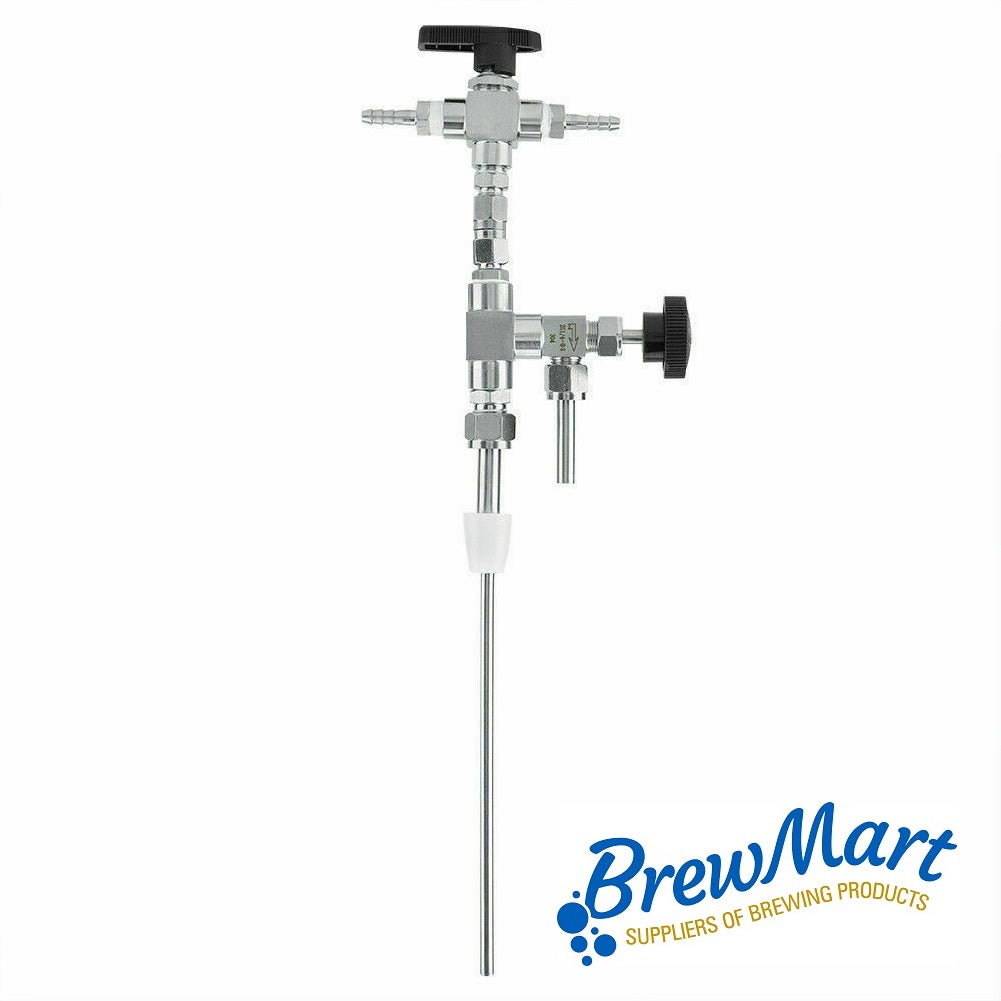

Stainless Steel "T" Type Counter Pressure Bottle Filler

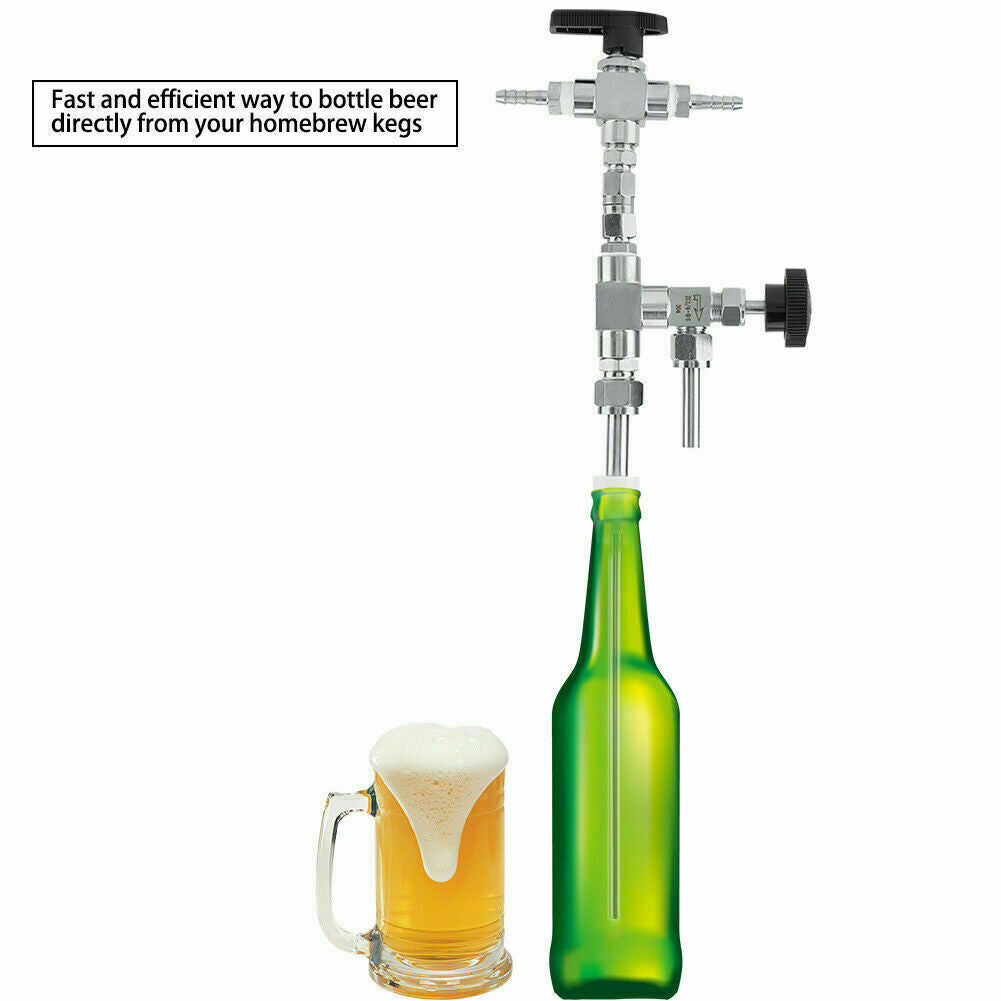

• This "T" type counter pressure bottle filler allows you to fill bottles from a carbonated keg with minimal foaming and CO2 loss.
• Doing this helps avoid having sediment in the bottom of the bottle and reduces oxygen exposure, resulting in an increased shelf life of the bottled beer.

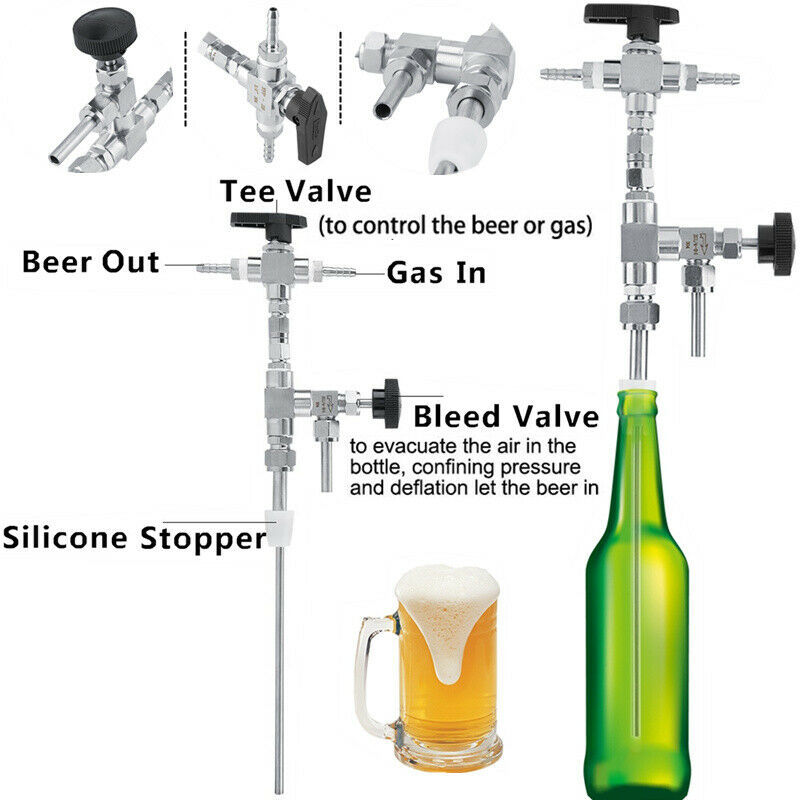

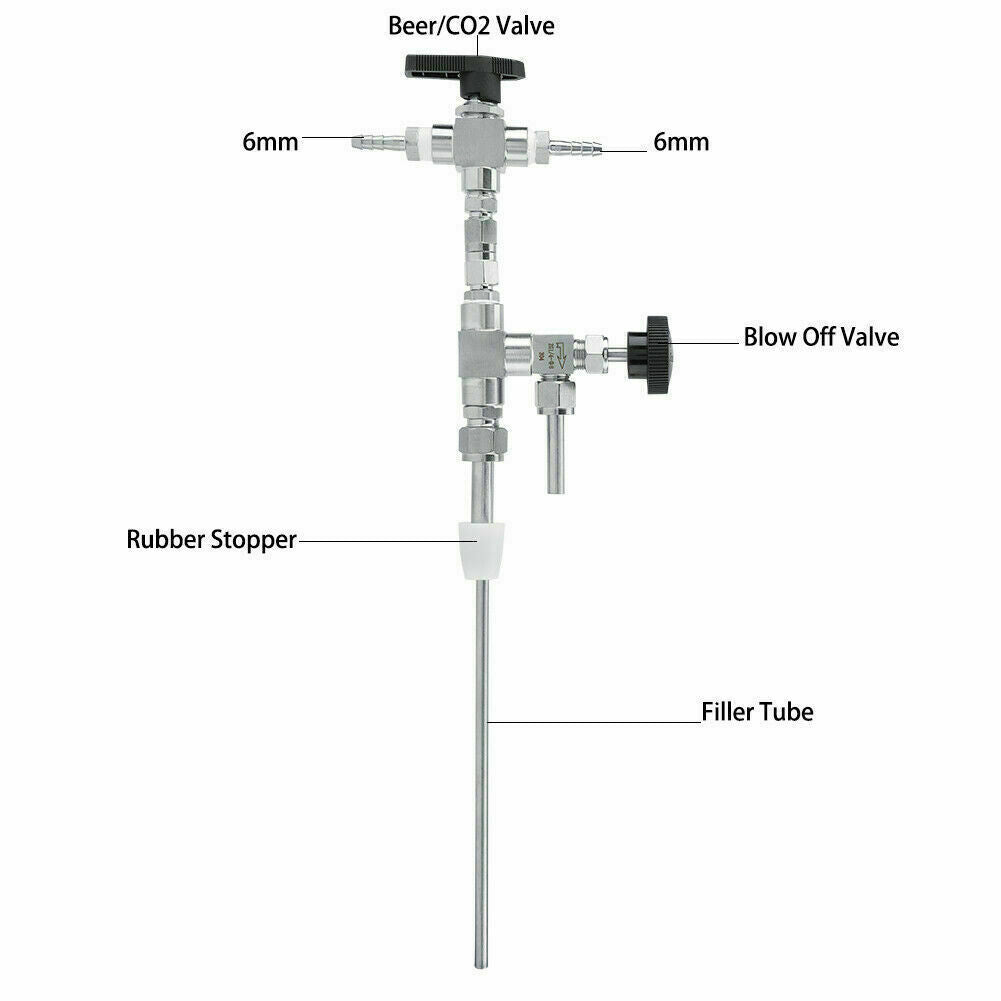

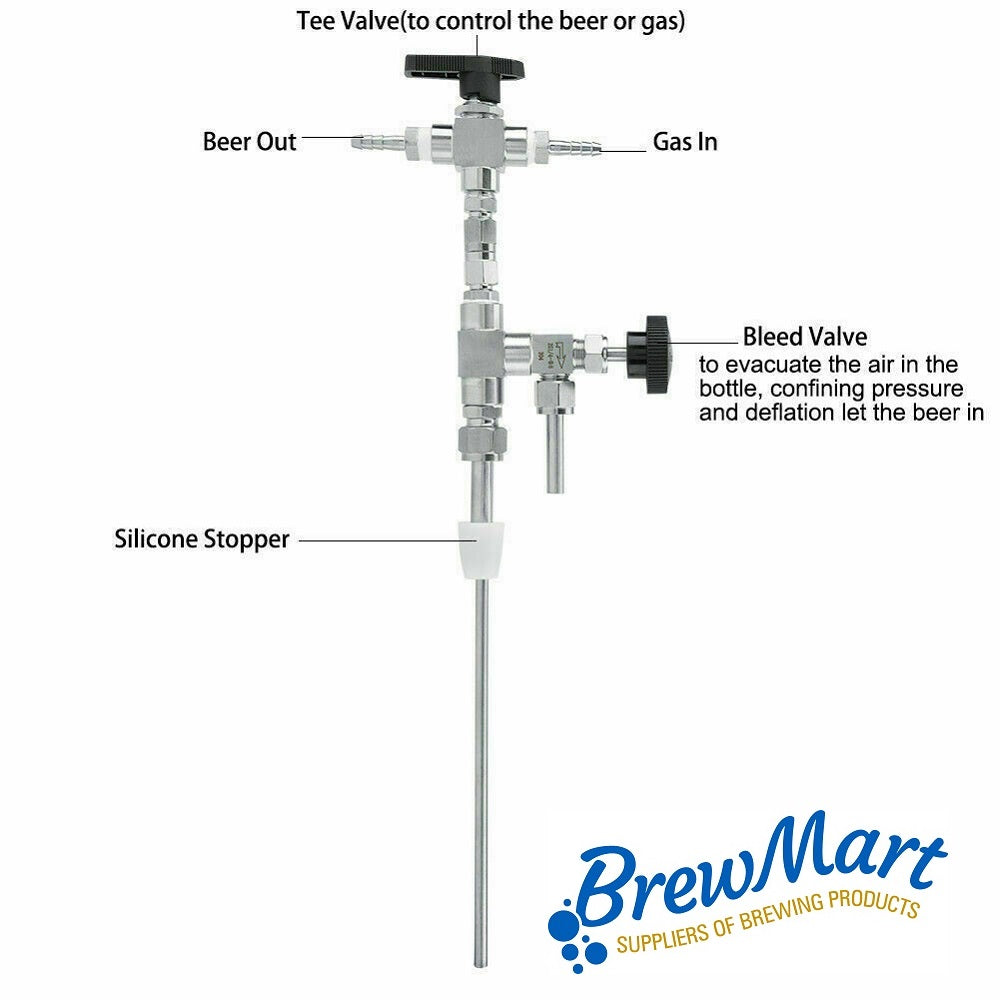

• The three way valve at the top is meant to be connected to your CO2 line and a beer line from your keg.
• Prior to bottling please ensure the beer is below 2° Celsius and the pressure on your regulator is set slightly above the equilibrium pressure of the beer (typically about 12-14psi).
• Turn the three way valve to the CO2 side to pressurize and create a base of CO2 at the base of the bottle to prevent O2 exposure to the beer.
• If needed you can open the side release valve for a couple if seconds to help remove air from the bottle.
• Upon being pressurized you can turn the three way valve to the beer line side allowing the beer to flow into the bottle.
• When the bottle starts to be full you can open the release valve on the side to allow the beer to fill the bottle further.
• After the bottle is full turn the three way valve off, remove the filler, cap the bottle, and enjoy!
• All components in contact with beer are made from stainless steel or silicone.
• Tubing and stainless steel clamps are NOT included. You will need to purchase them separately.

Specifications

• Made out of 304 Stainless Steel
• 6.35 mm (1/4") OD barbs

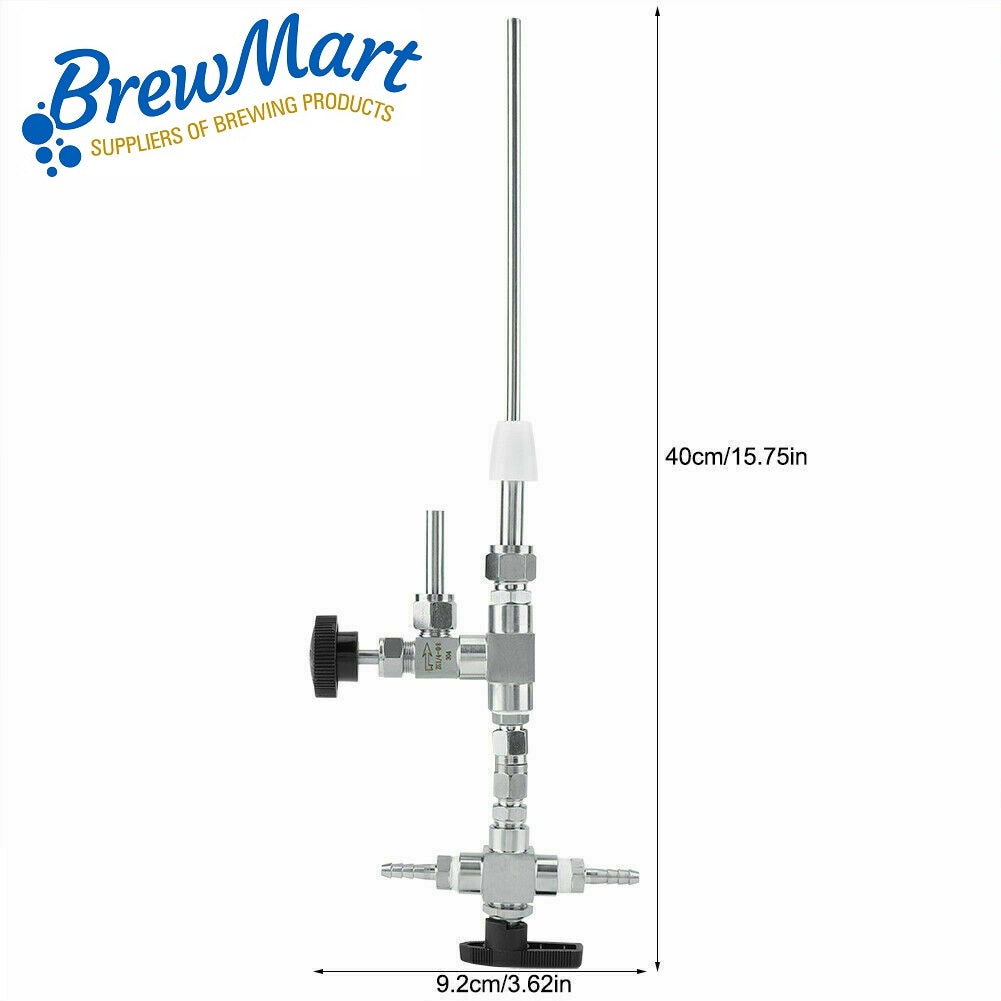

• Extends up to 266.7 mm (10 1/2") into bottle
• 444.5 mm (17 1/2") total length
