BREWTOOLS F100 UNITANK

Brewtools F100 Unitank.

Brewtools Unitanks are fermenters you can ferment, carbonate and serve your beer from. They are pressure rated and offers a lot of functionality.

Features

• Pressure controlled fermentation using a spunding valve.
• Dry hopping with minimal exposure to oxygen.
• Forced carbonation.
• Closed transfer to keg or bottle.
• Use it as a serving tank.
• Yeast harvesting from bottom or top.
• Temperature control using a glycol chiller.

In addition to this, our unitanks offer

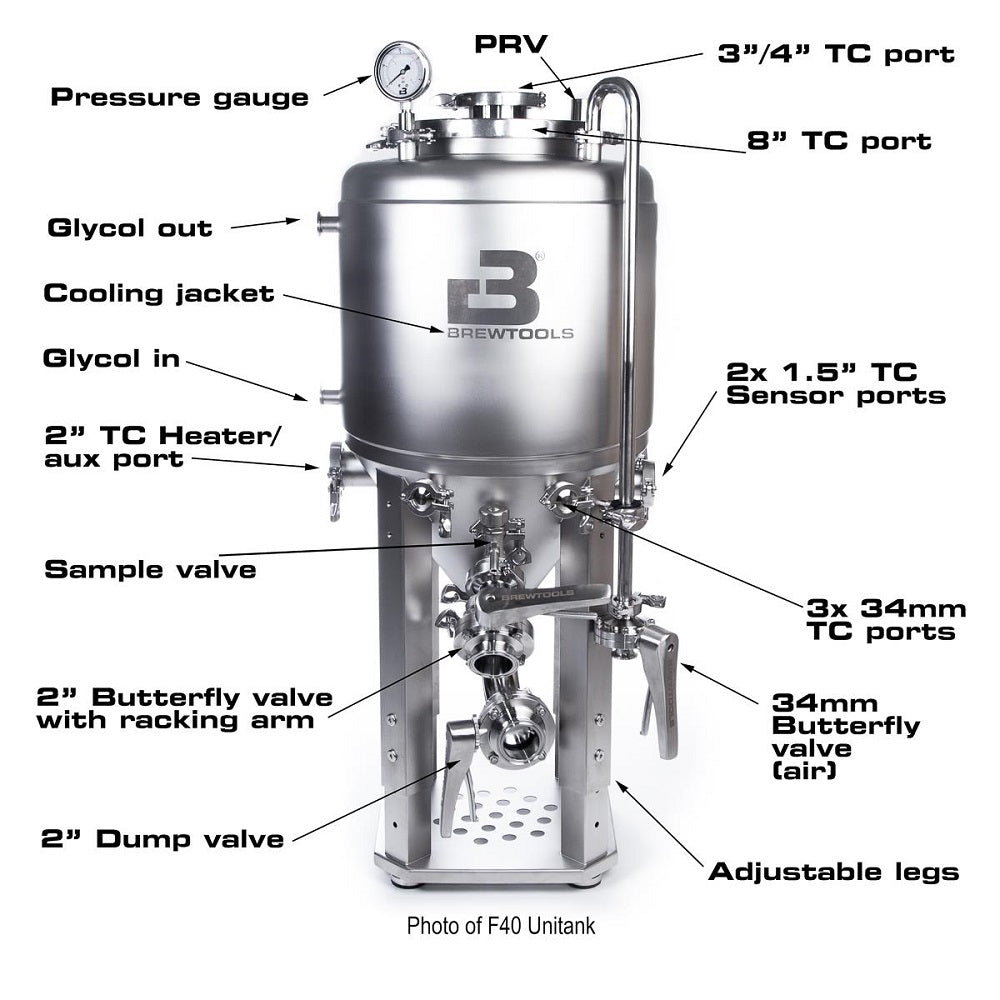

• Built in cooling jacket for easy cleaning and efficient cooling.
• TC 2" Heating element port (accessory) for high temperature fermentation.
• Additional TC ports for accessories.
• PureBlast™ surface inside and out for easier cleaning, lower risk of hidden micro-pore contamination and no need for passivation.

Items included as standard<.h4>

• 1 pcs Analog pressure gauge, TC 34 mm
• 1 pcs TC 34 mm safety valve (PRV, 2 bar)
• 1 pcs TC pipe holder for Blow-off pipe incl. bolt M6 x 30 mm and silicone grommet
• 1 pcs Blow-off pipe
• 1 pcs Butterfly-valve, 34 mm DN20
• 2 pcs Butterfly-valve, 2"
• 1 pcs Racking arm 2"
• 1 pcs TC elbow 90°, 2"
• 1 pcs Insulation jacket, black neoprene
• 1 pcs Sample valve, 34 mm
• 1 pcs TC Adapter 8"- 4" *(F40 and F80 comes with 8" - 3" adapter)
• 1 pcs TC blind cap, 4" *(F40 and F80 comes with 3" blind cap)
• 1 pcs TC blind cap 2"
• 2 pcs TC blind cap 1.5"
• 3 pcs TC blind cap 34 mm
• 2 pcs TC gasket 8" lipped
• 2 pcs TC gasket 4" *(F40 and F80 comes with 3" gasket)
• 2 pcs TC gasket 2" 5-pack
• 1 pcs TC gasket 1.5" 5-pack
• 3 pcs TC gasket 34 mm 5-pack
• 1 pcs Tri Clamp 8"
• 1 pcs Tri Clamp 4" *(F40 and F80 comes with 3" clamp)
• 5 pcs Tri Clamp 2"
• 2 pcs Tri Clamp 1.5"
• 10 pcs Tri Clamp 34 mm (DN20)
• 1 pcs Safety instruction with link to our online user manual
• 8 pcs Bolts for mounting the legs
• 4 pcs M10 steel/rubber feet
• 1 pcs Tool for tightening TC clamps
• 1 pcs Brewtools multi tool

Accessories (sold separately). Consider the following accessories before placing your order

• Thermowell, if you plan to use it with a glycol chiller (Choose TC 34 mm if you want it in front or 1.5" if you want it on the right side. Both come in different lengths.
• Ball Lock adapter to add Co2 for purging, force carbonation or closed transfer to kegs.
• Carb stone kit for forced carbonation.
• Coil for sample valve for getting samples with less foam.
• 3" (F40 & F80) or 4" (F100 ->) HopDrop kit.
• TC 34 Analog temperature gauge.
• Spunding valve for pressure control.
• Hose barb and silicone hose for filling, dumping and blow-off tube
• TC 2" sight glass.
• CIP ball with 4" or 3" CIP adapter.
• Desired fittings for cooling jacket (if using glycol chiller).

Specifications

• Height without accessories (legs subtracked): 102 cm
• Height without accessories (legs extended): 122 cm
• Packing size: 107 (h) x 60 (w) x 60 (d) cm
• Net weight: 47.8 kg
• Gross weight: 53.1 kg
• Tank diameter: Ø50 cm
• Gross volume: 100 liter / 26.4 US gallons
• Maximum recommended volume: 90 liters / 23.8 US gallons
• Minimum recommended volume (considering the cooling jacket): 45 liters / 11.9 US gallons
• Volume cone: 24 liters / 6.3 US gallons
• Volume cooling jacket: 1.6 liters
• Material: 1.5 mm Stainless Steel (SS304)
• Surface treatment inside and outside: PureBlast™
• Operating Pressure: 1.0 bar / 15 PSI
• Maximum Pressure: 2.0 bar / 30 PSI
